RF Combiner
Home /

RF Combiner

 / RF penta band combiner 790-960,1710-1880，1920-2170，2490-2700，3300-3800MHz

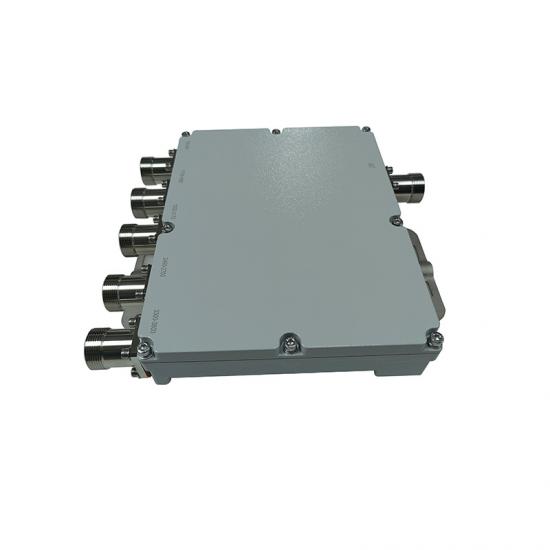

penta band combiner
penta band combiner penta band combiner penta band combiner

RF penta band combiner 790-960,1710-1880，1920-2170，2490-2700，3300-3800MHz

This single penta band combiner, covers frequency 790-960,1710-1880，1920-2170，2490-2700，3300-3800MHz for 5G, Low PIM, high isolation, low loss. It's easy for installation.

  • Item NO.:

    MNL-PB-738-153-4F

  • Product Orgin:

    China

  • Brand:

    Maniron

  • Shipping Port:

    Shanghai/Shenzhen/Ningbo

  • Color:

    Grey
Inquiry now
  • Products Details

Product Name

Low PIM 790-960,1710-1880，1920-2170，2490-2700，3300-3800MHz Single penta band combiner

Product Features

◆Compact, low weight

◆Low PIM

◆High reliability

◆Simple installation

◆Contain 800/900/1800/3800MHz bands



Technical &Mechanical Specifications

Product Name

RF penta band combiner

Frequency Band(MHz)
 CH1: 790-960MHz

CH2: 1710-1880MHz

CH3: 1920-2170MHz

CH4: 2490-2700MHz

CH5: 3300-3800MHz

VSWR  1.3 Max.
Port isolation
 50min
Insertion Loss(dB)
 0.4Max
Connectors type 4.3-10 female
Impedance
 50 Ohm
Power/Avg 300W

Lightning Protection

3kA; 10/350 μs pulse


PIM(dBc)Operating Temp. (℃)
 ≥155@2×43dBm
IP Rate
 65
Operating Temp. (℃)
 -40~+85

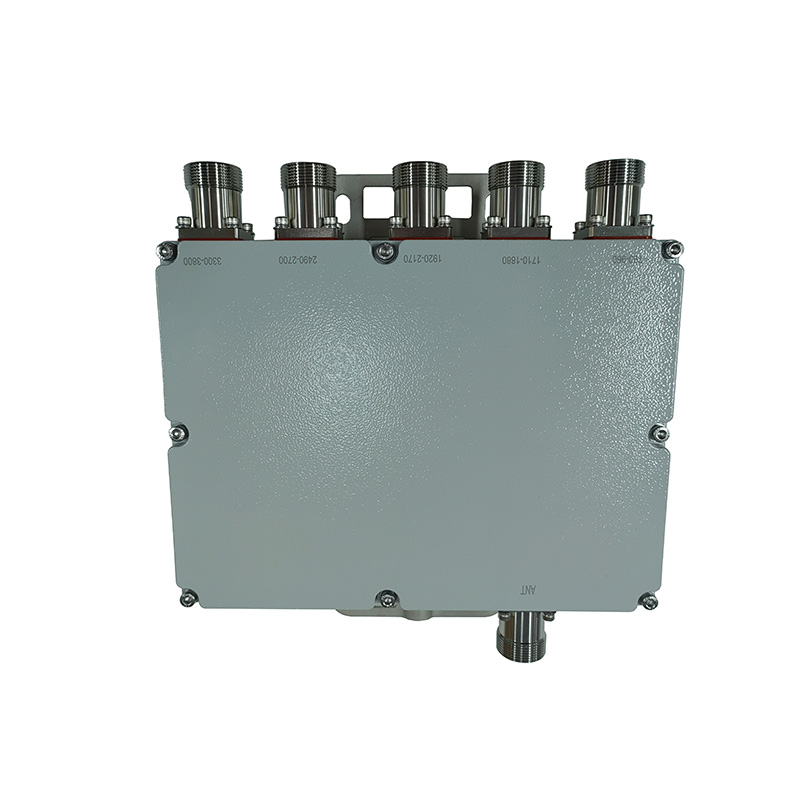

Product Pictures


penta band combiner
