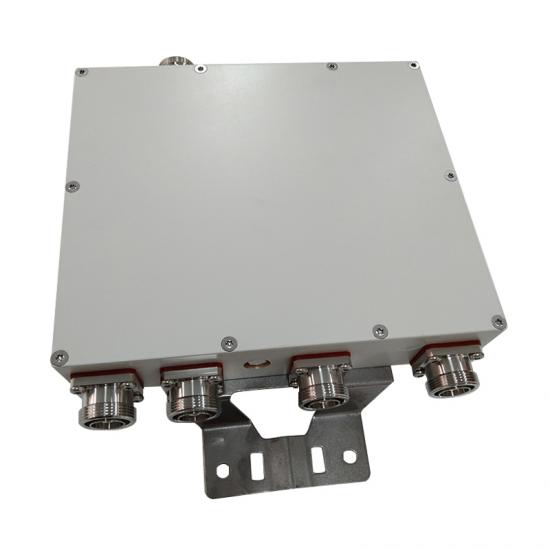

Quad band combiner quadplexer 900 1800 2100 2600MHz

790-960MHz/1710-1880MHz/1920-2170MHz/2490-2690MHz quad band combiner, DIN female, PIM 155dBc

  • Item NO.:

    MQ-09182126-DF-S

  • MOQ:

    1
Inquiry now
  • Products Details

Product Features


Low insertion loss

High isolation between each input port  Modularity: Single

Available for outdoor applications

Connectors: 4.3/10 type female

Applications: wireless base station, Indoor DAS, metro coverage etc.


Electrical Specifications

Port

Band 1

Band 2

Band 3

Band 4

Frequency Range

790-960MHz

1710-1880MHz

1920-2170MHz

2490-2690MHz

Insertion Loss

＜0.5dB

＜0.5dB

＜0.5dB

＜0.5dB

VSWR

＜1.3

Power Rating

300W

300W

300W

300W

DC Pass

Yes

Yes

Yes

Yes

Isolation

≥50dB

PIM(3rd order)

≤-155dBc@2x43dBm

Impedance

50Ω



Mechanical Specifications

Weight

3.70Kgs

Dimensions

See Drawings

Connector

4.3/10 type female

Colour

Cool Grey

Operating Humidity

5%-95%

Operating Temperature

-40 to 65ºC

Application

Indoor or Outdoor

Mounting

Pole or Wall Mount

Waterproof grade

IP65
