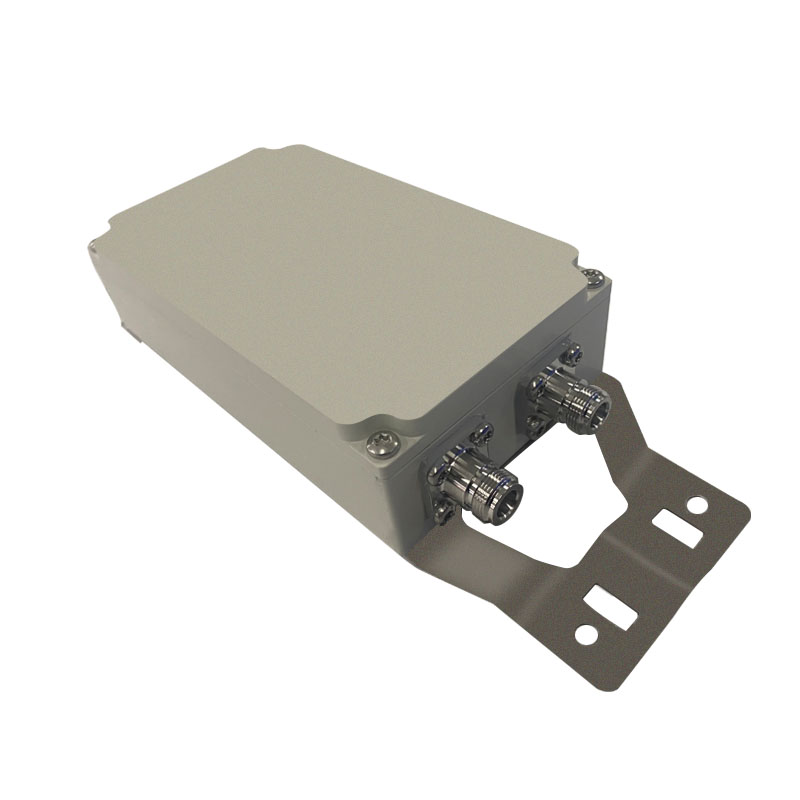

Maniron 698-2700MHz RF Dual Band Combiner Diplexer low PIM

The rf combiner/rf diplexer covers from 698-2700MHz,in low PIM -160dBc.

  • Item NO.:

    MNC-727-160-NF

  • Product Orgin:

    China

  • Brand:

    Maniron

  • Shipping Port:

    Shanghai/Shenzhen

  • Color:

    Grey
Inquiry now
  • Products Details

Product Name

698-2700MHz Low PIM RF Diplexer/Dual Band Combiner


 Product Features

 ◆Compact, Low Weight

 ◆ Contain 2G/3G/4G/5G

 ◆Low Passive Inter-modulation  -160dBc

 ◆High Reliability

 ◆ Simple Installation


This combiner,rf diplexer/duplexer covers frequency 698-2700MHz,it is in low PIM -160dBc.


Technical &Mechanical Specifications

Frequency
CH1: 698 to 960MHz
CH2: 1710 to 2700MHz
VSWR
≤1.25
Insertion loss
≤0.5dB
Isolation
50dB
Power handling
200 W Avg
1000W Peak
Intermodulation (3rd order)
≤-160dBc @ 2 x 20 W
Impedance
50 Ohm
Connectors type
N female


Pictures

rf dual band combiner

698-2700mhz rf diplexer
