 / RF 790-862MHz/880-960MHz/1710-1880MHz/ 1920-2170MHz/2500-2700MHz Combiner Low PIM Pentaplexer

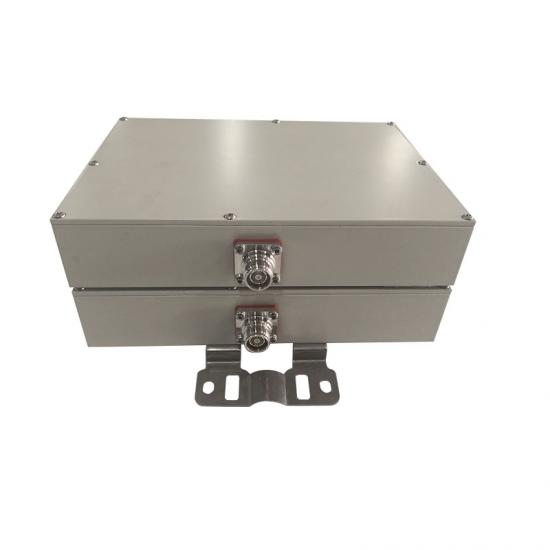

790-2700MHz 200W Low PIM -155dBc double unit combiner
790-2700MHz 200W Low PIM -155dBc double unit combiner 790-2700MHz 200W Low PIM -155dBc double unit combiner 790-2700MHz 200W Low PIM -155dBc double unit combiner

RF 790-862MHz/880-960MHz/1710-1880MHz/ 1920-2170MHz/2500-2700MHz Combiner Low PIM Pentaplexer

The Pentaplexer covers frequency from790-862MHz/880-960MHz/1710-1880MHz/1920-2170MHz/2500-2700MHz which is in low pim -155dBc with 4.3-10-F Connector

  • Item NO.:

    MNC-05-727-155-4310F

  • Product Orgin:

    China

  • Brand:

    Maniron

  • Shipping Port:

    Shanghai/Shenzhen

  • Color:

    Grey
Inquiry now
  • Products Details

Product Name

790-862MHz/880-960MHz/1710-1880MHz/1920-2170MHz/2500-2700MHz Low PIM -155dBc RF Pentaplexer Combiner


Product Features

◆Compact, Low Weight

◆Low Passive Inter-modulation  -155dBc

◆High Reliability

◆Simple Installation

This combiner,rf pentaplexer covers frequency 790 to 2700MHz,it is in low PIM -155dBc.


Technical &Mechanical Specifications

Frequency

          CH1:790-862 MHz

           CH2:880-960 MHz

               CH3:1710-1880 MHz

                               CH4:1920-2170MHz

                                            CH5:2500-2700 MHz

Return Loss

  ≥19dB

Insertion loss

     ≤0.5dB

Isolation

     ≥50dB

Input power

    200W

Intermodulation (3rd order)

        ≤-155dBc @ 2 x 43dBm

Impedance

      50Ohm

Lightening Protection

    10kA, 10/350µs

Connectors type

    4310 female

Applications

        IP67


Pictures

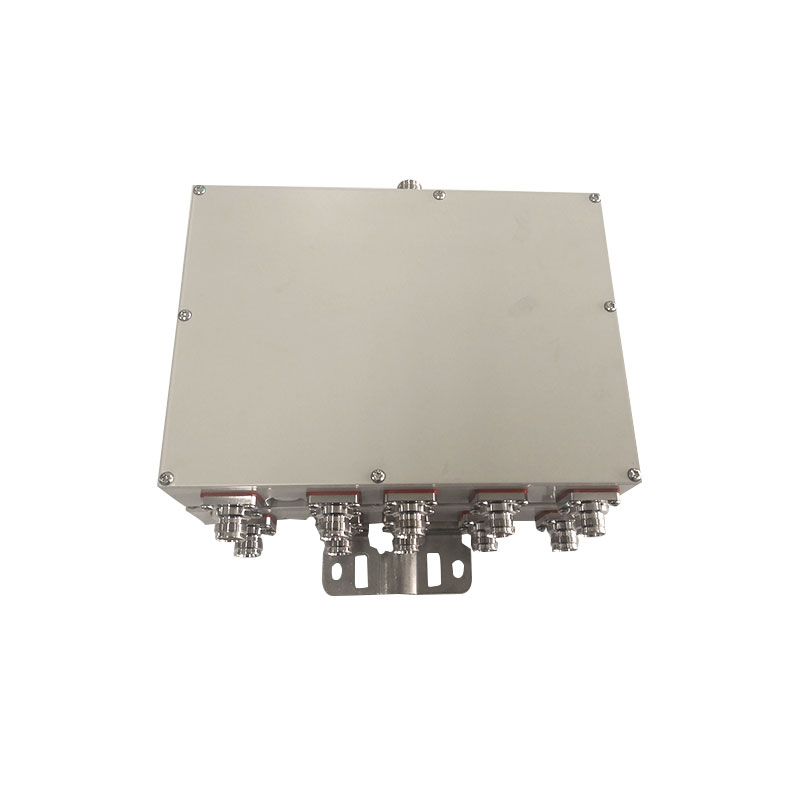

low pim rf pentaplexer
