dual band combiner diplexer 698-2170MHz 2400-2700MHz

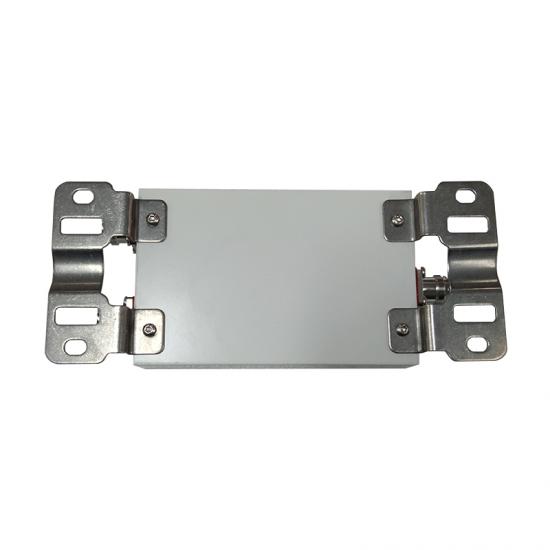

dual band combiner diplexer 698-2170MHz 2400-2700MHz , 4.3-10 female , PIM 155dBc

Item NO.:
MCD-727-4F-155
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Ningbo
Color:
Grey
MOQ:
1

Inquiry now

Products Details

Product Name

RF Diplexer/Dual Band Combiner

Product Features

Low insertion loss
High isolation between each input port
Modularity: Single
Available for all indoor and outdoor applications
Connectors: DIN type female

Technical &Mechanical Specifications

Electrical Specifications
Port	Band 1	Band 2
Frequency Range	698-2170MHz	2400-2700MHz
VSWR	≤1.3
Insertion Loss	≤0.5dB	≤0.5dB
Power Handling	300W	300W
Isolation	≥50dB@2400-2700MHz	≥50dB@698-2170MHz
DC Pass	3A	3A
PIM	≤-155dBc@2*20W
Impedance	50Ω

Mechanical Specifications
Weight	1.60kg
Dimensions	17611238mm (Single Unit)
Connector	4.3-10 female
Colour	Grey or customized
Operating Humidity	0-95%
Operating Temperature	0 to55ºC
Application	Outdoor
Mounting	Pole or Wall Mount
Waterproof grade	IP65

Drawing

Pictures

Leave Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : dual band combiner diplexer 698-2170MHz 2400-2700MHz
Im interested in your "dual band combiner diplexer 698-2170MHz 2400-2700MHz", please inform me more detailed product information and price. Thankyou!
