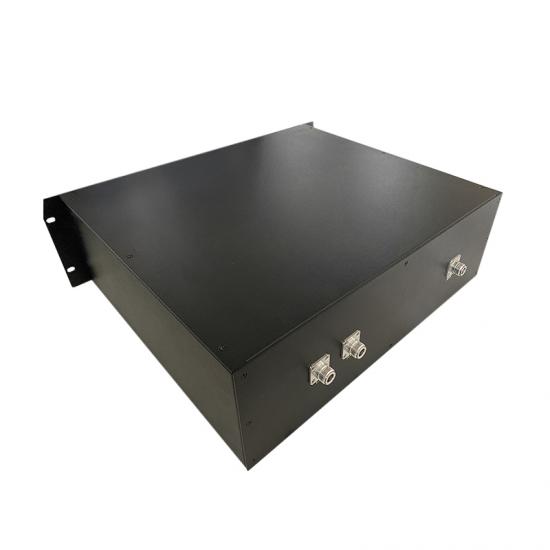

UHF 400MHz Duplexer 2 Way TX Combiner

400MHz TX 2 Way Combiner,frequency spacing 250KHz,which is in high isolation.

  • Item NO.:

    MNCD-400-75

  • Product Orgin:

    China

  • Brand:

    Maniron

  • Shipping Port:

    Shanghai/Shenzhen/Ningbo

  • Color:

    Black
Inquiry now
  • Products Details

Product Name

400-470MHz 2 Way TX Combiner


Product Features

◆Compact, Low Weight

◆High Reliability

◆ Simple Installation


Technical &Mechanical Specifications

Frequency
                               400-470MHz
VSWR 1.3
Insertion loss ≤4.5dB
Isolation
≥60dB
Power handling
50W Avg
Frequency Spacing 250KHz
Connectors type N female

Customized specification is available,frequency points can be specified.

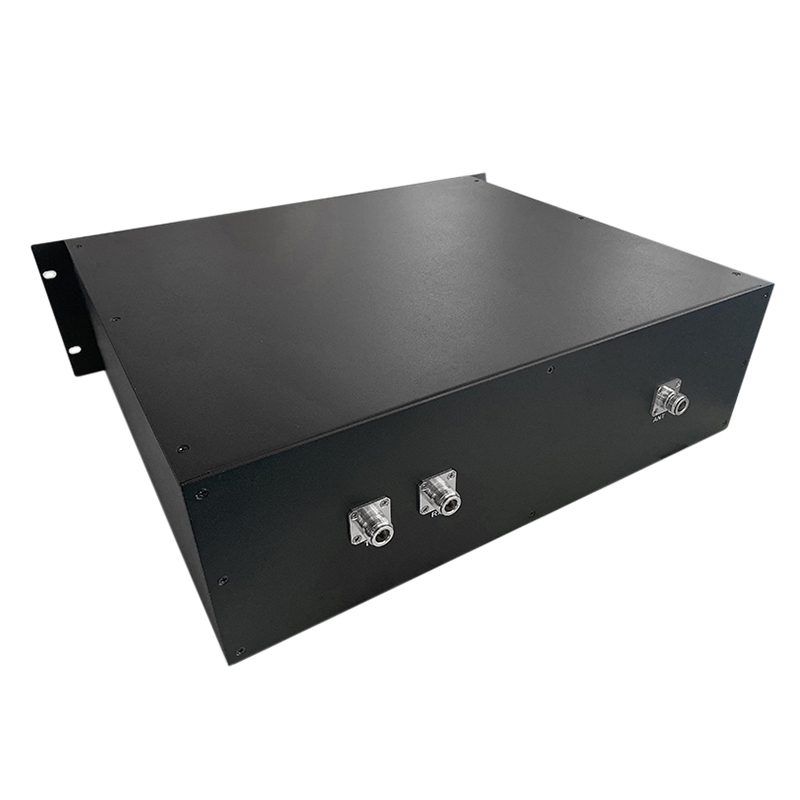

Product image

TX RX 2 Way Combiner
