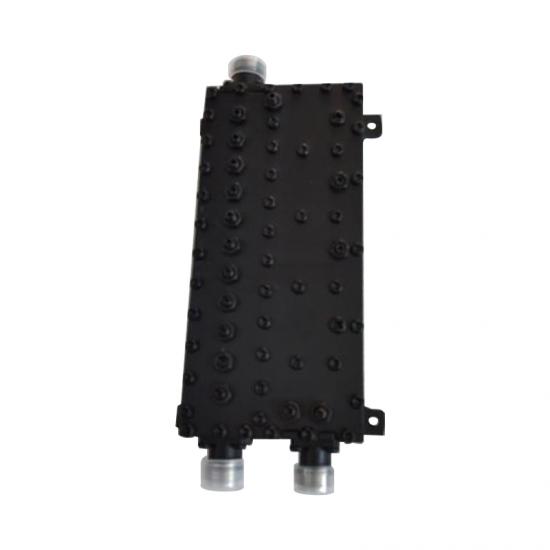

Dual band combiner 800-960 MHz /1710-2170MHz, N-female

Diplexer (800-960 MHz /1710-2170MHz, 200W, N-F, -145dBc)

Item NO.:
MD-821-NF-145-60
Lead Time:
Based on exact quantity
Product Orgin:
Hefei , China
Brand:
Maniron
Shipping Port:
Shanghai , Ningbo , Shenzhen....
Color:
Black or Customized
MOQ:
1

Inquiry now

Products Details

Main Features

Compact, Low Weight

Contain LTE800 / CDMA850 / GSM900 /GSM1800 Bands

Low PIM

High Reliability

Simple Installation

Electrical Specifications

Frequency CH1: 800 to 960MHz CH2: 1710 to 2170MHz

VSWR ≤1.25

Insertion loss ≤0.5dB

Fluctuations in the band ≤0.4dB

Band rejection 80dB minimum

Input power 200 W Average

Intermodulation (3rd order) ≤ -145dBc @ 2 x 43dBm

Impedance 50 Ω

Environmental Specifications

Working temperature -20°C to +55°C

Relative humidity 5% - 95%

Applications Indoor IP60

Mechanical Specifications

Connectors type N-female

Weight 0.55kg

Outer Dimension(mm) See the drawing

Packing 1Pce in box
