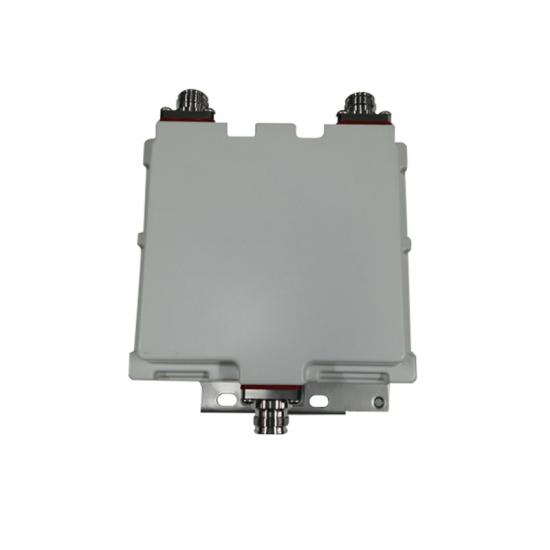

1800/2100MHz RF Dual Band Combiner
1800/2100MHz RF Dual Band Combiner 1800/2100MHz RF Dual Band Combiner 1800/2100MHz RF Dual Band Combiner 1800/2100MHz RF Dual Band Combiner 1800/2100MHz RF Dual Band Combiner

1710-1880 MHz /1920-2170MHz diplxer dual band combiner

1800/2100MHz Dual Band Combiner Diplexer  4.3-10 female Compact, low weight Low PIM                                                        High reliability Simple installation

  • Item NO.:

    MDC-18/21-4F-160

  • Lead Time:

    Based on exact quantity

  • Product Orgin:

    China

  • Brand:

    Maniron

  • Shipping Port:

    Shanghai/Shenzhen/NingBo

  • Color:

    Grey or customized

  • MOQ:

    5
Inquiry now
  • Products Details

Product Specifications

MDC-18/21-4F-160

1710-1880 MHz/1920-2170MHz  Combiner



Main Features

♦ Compact, low weight

♦ Low PIM

♦ High reliability

♦ Simple installation


Electrical Specifications

Frequency:

CH1: 1710 to 1880MHz

CH2: 1920 to 2170MHz

VSWR:

≤1.25

Insertion loss:

Isolation between ports:

≤0.3 dB

≥50 dB

Power handling:

200 W/Avg

1000W/ Peak

Intermodulation (3rd order) :

Impedance（Nominal）

≤ -160dBc @ 2 x 20 W

50 Ohm



DC By Pass

DC pass all ports



Environmental Specifications




Operating temperature range:

Applications:

Relative humidity:

Storage temperature range:


-40°C to +65°C

IP67

5% - 95%

-40°C to +85°C



Mechanical Specifications

Connectors type:

4.3-10 Female

Weight:

1.9kg

Outer Dimension(mm) :

168*149*46

Packing:

1Pce in box
