 / Maniron RF 80-960MHz 1695-3900MHz Low PIM -155dBc RF Combiner Diplexer

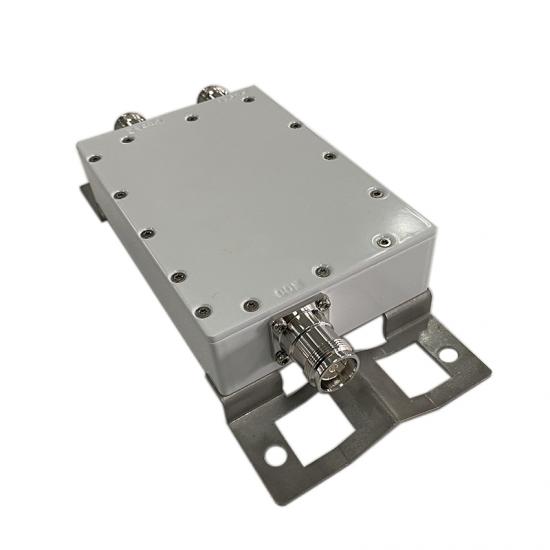

low pim dual band combiner with 4.3-10 Connector
low pim dual band combiner with 4.3-10 Connector low pim dual band combiner with 4.3-10 Connector low pim dual band combiner with 4.3-10 Connector

Maniron RF 80-960MHz 1695-3900MHz Low PIM -155dBc RF Combiner Diplexer

It's low pim RF Dual Band Combiner,which covers wide band frequency 80-960MHz and 1695-3900MHz.

  • Item NO.:

    MNC-8039-50-4310

  • Product Orgin:

    China

  • Brand:

    Maniron

  • Shipping Port:

    Shanghai/Shenzhen

  • Color:

    Grey
Inquiry now
  • Products Details

Product Name

80-960MHz/1695-3900MHz,100W, Low PIM RF Dplexer


  Product Features

 ◆Compact, Low Weight

 ◆ Contain 2G/3G/4G/5G

 ◆Low Passive Inter-modulation

 ◆High Reliability

◆ Simple Installation

This combiner covers frequency 80-960MHz/1695-3900MHz,it is in low PIM -155dBc.It can be customized according to customers' requirements.


Technical &Mechanical Specifications

Frequency

Band1: 80-960MHz Band2: 1695-3900MHz

VSWR

≤1.3(80-960MHz;1695-2700MHz）

≤1.4(2700-3900MHz)

Insertion loss

≤0.5dB

Isolation

50dB minimum

Power handling

100W per port Average

Inter-modulation (3rd order)

 ≤-155dBc @ 2 x 43dBm

Impedance

50 W

Connectors type

4310- Female


Pictures


low pim rf combiner

dual band combiner with 4.3-10 connector
