 / Maniron 790-862/880-960/1710-1880/1920-2170/2500-2700MHz Pentaplexer RF Combiner

RF Penta band Combiner
RF Penta band Combiner RF Penta band Combiner RF Penta band Combiner RF Penta band Combiner RF Penta band Combiner RF Penta band Combiner

Maniron 790-862/880-960/1710-1880/1920-2170/2500-2700MHz Pentaplexer RF Combiner

Wide Frequency Band 790-862/880-960/1710-1880/1920-2170/2500-2700MHz penta band Combiner widely used for In-building Solutions DAS

  • Item NO.:

    MNC-727-4F-155

  • Product Orgin:

    China

  • Brand:

    Maniron

  • Shipping Port:

    Shanghai/Shenzhen/Guangzhou

  • Color:

    Grey

  • MOQ:

    1
Inquiry now
  • Products Details

Product Name

Low PIM -150dBc 790-2700MHz Pentaplexer for 4G IBS DAS


Product Features

◆Compact, low weight

◆Low PIM

◆High reliability

◆Simple installation


Technical &Mechanical Specifications

 Model
MNC-727-4F-155
 Freq-MHz
CH1:790-862 MHz
CH2:880-960 MHz
CH3:1710-1880 MHz
CH4:1920-2170MHz
CH5:2500-2700 MHz
 Return Loss
≥19dB
 Insertion loss
≤0.5dB
Isolation
≥50dB
 Input power
200W
 Intermodulation (3rd order)
≤-155dBc @ 2 x 43dBm
 Impedance-Ω
50
 Connector
4.3-10 female
 Temp(deg)
-20~+65
 Applications
Indoor/Outdoor（IP65）

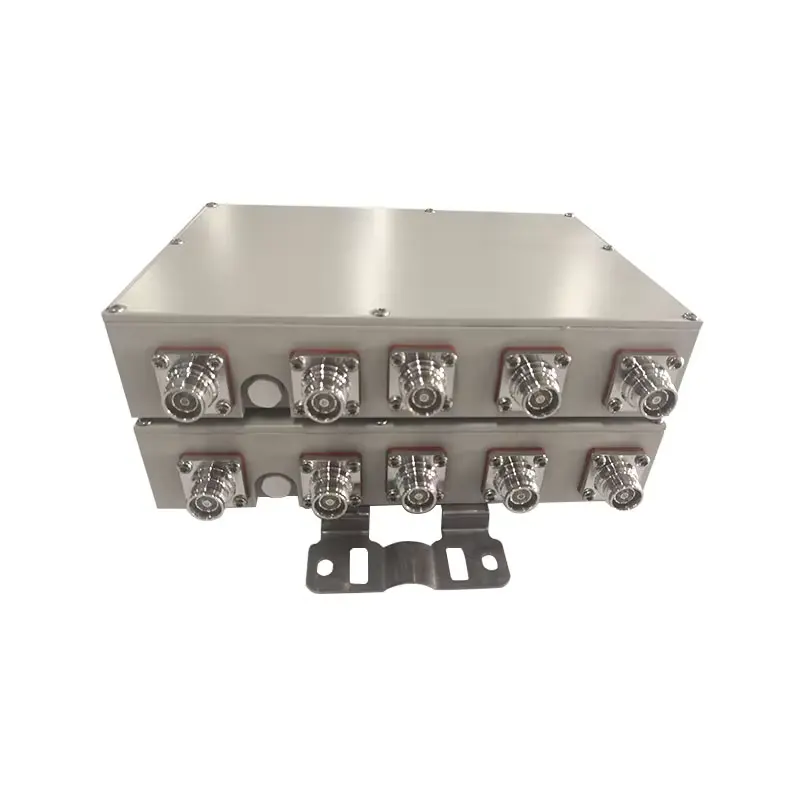

Picture:

4g pentaplexer



Our Advantages

Hefei Maniron Electronic And Technology Co.,Ltd.,established in 2002,located in Hefei National Hi-tech Industry Development Zone,is a leading manufacture of RF Components.

OEM services are offered.Maniron has a huge fellowship that is composed of many high-level technologists.We also has established a Research Insititution which is a cooperating with some famous universties in China.

Excelent engineers and profesional team

We also other passive components with Low PIM values,such as -150dBc,160dBc,161dBc etc.
