700/900MHz RF Dual Band Combiner
700/900MHz RF Dual Band Combiner 700/900MHz RF Dual Band Combiner 700/900MHz RF Dual Band Combiner 700/900MHz RF Dual Band Combiner

700/900MHz Twin Diplexer RF Dual Band Combiner Low PIM -150dBc

700/900MHz Twin Diplexer RF Dual Band Combiner Low PIM -150dBc,Dc Pass On all Parts -Industry leading PIM performance -Designed for network Modernization,introduction of LTE700 on existing site -Twin Configuration(single unit is also available) -DC/AISG pass-through on all frequency ports

  • Item NO.:

    LX-0212 R1

  • Lead Time:

    2-4weeks

  • Product Orgin:

    China

  • Brand:

    Maniron

  • Shipping Port:

    Shanghai/Shenzhen/NingBo

  • Payment:

    FOB, FCA, Paypal

  • Color:

    Grey

  • MOQ:

    5
Inquiry now
  • Products Details

Product Name

700/900MHz Twin Diplexer RF Dual Band Combiner Low PIM -150dBc


Product Features

◆Compact, Low Weight

◆ Used for combining or splitting different frequency bands onto the same feeder systems

◆Low Passive Inter-modulation

◆High Reliability

◆ Simple Installation



700/900MHz Twin Diplexer RF Dual Band Combiner Low PIM -150dBc.It can be customized according to customers' requirements.


Technical &Mechanical Specifications

Frequency


                                               Band1: 703-803MHz

                                               Band2: 895-960MHz

Return Loss

                                                     20dB min

Insertion loss

                                                    ≤0.25dB

Isolation

                                              45dB minimum

Power handling

                                        200W per port Average

Inter-modulation (3rd order)

                                       ≤-150dBc @ 2 x 43dBm

Impedance

                                                50ohm

Connectors type

                                           4310- Female

DC Characteristics
                           DC by-pass between all ports (max 1000 mA)

Pictures

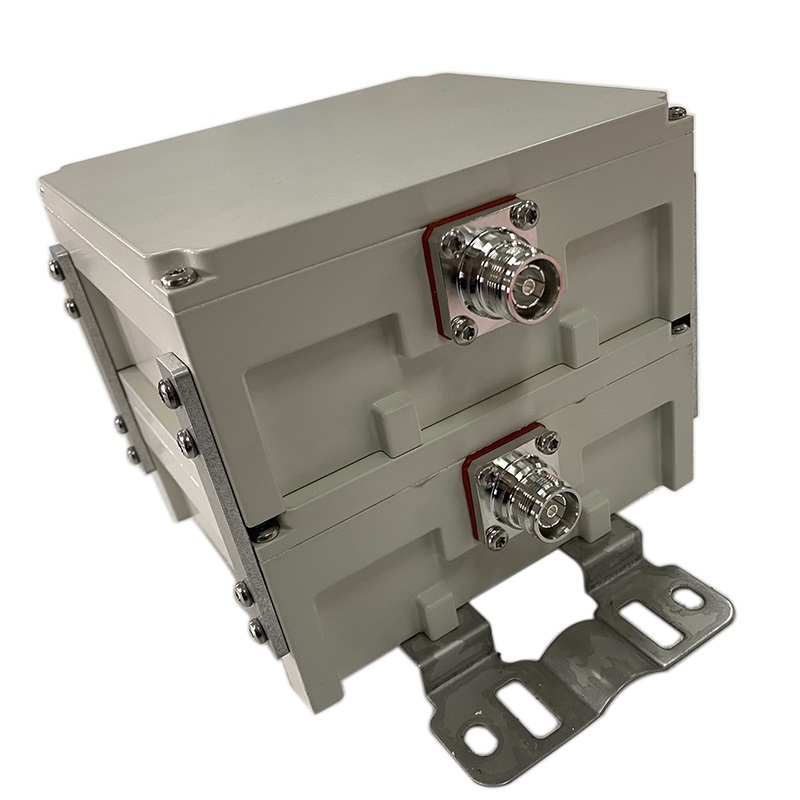

low pim rf combiner

dual band combiner with 4.3-10 connector
