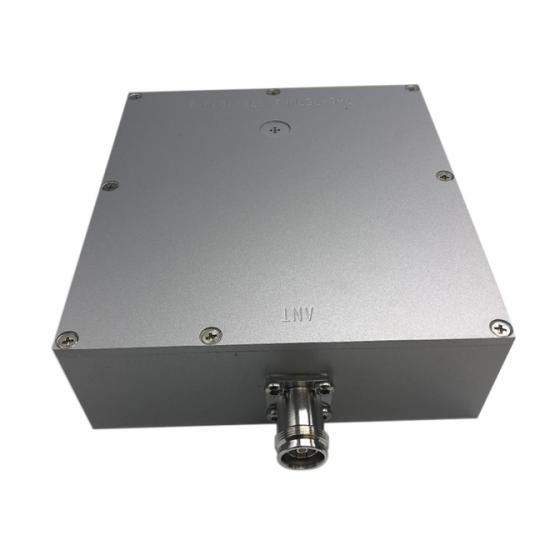

High Quality 200W 380-396.5MHz VHF Duplexer with DIN-F

380-396.5MHz Duplexer  with DIN-F, High Power Capacity, High Isolation. It's Easy For Installation.
  • Item NO.:

    MNL-CD-380-396.5-DIN
  • Product Orgin:

    China
  • Brand:

    Maniron
  • Shipping Port:

    Shanghai/Shenzhen/Guangzhou
  • Color:

    Black
  • Products Details

Product Name

200W 380-396.5MHz VHF Compact Duplexer with DIN F High Isolation 80dB 1.50 VSWR RF Duplexer for DAS Radio Repeater.


Product Features

◆Compact, low weight

◆Low PIM

◆High reliability

◆Simple installation

Technical &Mechanical Specifications

Outline Pictures:

Frequency

Rx: 380 - 386.5 MHz

Tx: 390 - 396.5 MHz

Max. Input Power

≤ 200 W (RMS)

Peak Input Power

≤ 800 W

Isolation Tx - Rx

≥ 60 dB

Spacing Tx-Rx

3.5 MHz

Insertion Loss

Tx and Rx: ≤ 1.5 dB

DC Stop

Yes: OC (Open Circuit)

VSWR

< 1.3:1 (> 18 dB Return loss)

Bandwidth (Tx and Rx)

6.5 MHz

Connectors type

7/16 DIN(f)
