30W UHF duplexer
30W UHF duplexer 30W UHF duplexer 30W UHF duplexer

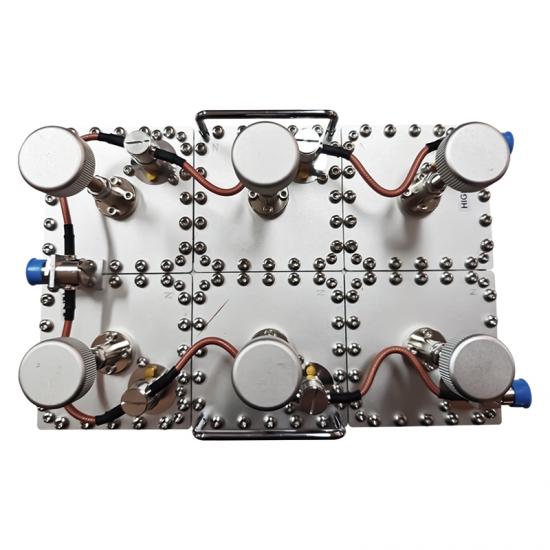

30W UHF 380-520MHz cavity duplexer N female

UHF 380-520MHz 30W  Duplexer for Radio Repeater or Mobile Radio

  • Item NO.:

    MND-UHF450-30W

  • Lead Time:

    Based on exact quantity

  • Product Orgin:

    Hefei，China

  • Brand:

    Maniron

  • Shipping Port:

    Shanghai ,Shenzhen,Ningbo

  • Payment:

    TT , Paypal , LC...

  • Color:

    Black or customized

  • MOQ:

    1
Inquiry now
  • Products Details



Specifications
Type MND-UHF450-30W
Frequency Range 380-520MHz
VSWR ≤1.35
Bandwidth(KHz) ±100 ±400 ±100
Frequency Spacing(MHz) ＞5-7 ＞7-12 ＞12-20
Insertion Loss ≤1.5dB ≤1.2dB ≤1.5dB
Isolation ≥75dB
Maximum Input Power 30W
Normal Impedance 50Ω
Connector N-F/BNC-F
Operating Temperature -20℃ - +50℃
Weight(kg) 1.2KG
Dimensions 225×154×35(±0.5mm)
