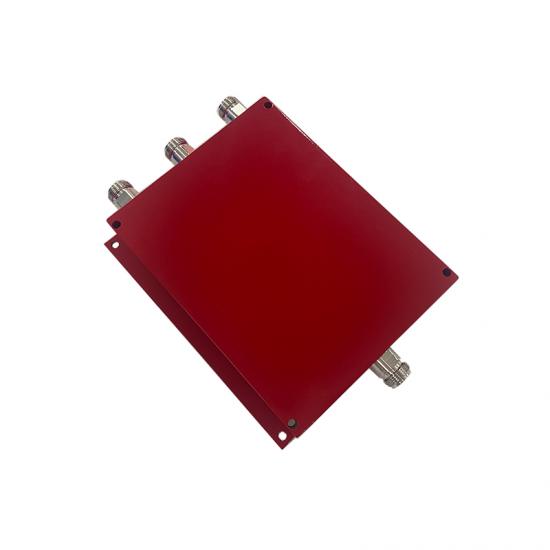

136-960MHz 3Way Wilkinson Power Divider Red Color

136-960MHz 3 way Wilkinson Splitter with wide frequency band,it is low insertion loss,low VSWR and widely used for public safety.It's also support Low PIM value at 700/800/900MHz

Item NO.:
MPS-190-03-NF-V
Lead Time:
According to quantity
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai,shenzhen
Color:
red or customized
MOQ:
2

Inquiry now

Products Details

Product Name

3 way WilkinsonPower Splitter (136-960MHz,50W,N-female, IP65)for Public Safety.

Product Features

◆Wide Frequency Band

◆ Low VSWR

◆ Low Insertion Loss

◆ Indoor &Outdoor Application IP65

◆Widely used for In-building Solutions and Public Safety system

Technical &Mechanical Specifications

Model No.	MPS-190-02-NF	MPS-190-03-NF-V	MPS-190-04-NF
Freq(MHz)	136-960	136-960	136-960
Output Port Number	2	3	4
Split Loss(dB)	3.0	4.8	6.0
IL(dB)	0.7	≤1.6	≤1.8
Isolation(dB)	20 min	18 min	16min
VSWR	≤1.30		≤1.35
Total Input Power(W)	50
Impedance	50 ohm
Connector	N-female
Color	Red
Temp(deg)	-30~+70
Application	Indoor or Outdoor, IP65
Weight(kg)	0.65	0.75	0.85

OUR SERVICES

1. Professional skills support for 3way Wilkinson Power Splitter.
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.
NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose!

Leave Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : 136-960MHz 3Way Wilkinson Power Divider Red Color
Im interested in your "136-960MHz 3Way Wilkinson Power Divider Red Color", please inform me more detailed product information and price. Thankyou!
