380-2700MHz 2 3 4Way Cavity Power Splitter

Wideband 380-2700MHz 4310 Type Cavity Power Splitter

380-2700MHz 4310-F Type Low PIM-160dBc 2Way/3Way/4Way Cavity Power Splitter/Divider with low insertion loss,low VSWR

Item NO.:
MPS-327-2/3/4-4F-160
Lead Time:
According to quantity
Product Orgin:
China
Shipping Port:
Shanghai,shenzhen
Color:
Black or customized
MOQ:
2

Inquiry now

Products Details

Product Name

380-2700MHz 4310-F Type 2Way/3Way/4Way Cavity Power Splitter/Divider/Combiner

N Type and 7/16 Type are also available,Black or grey color

Product Features

◆ Low VSWR

◆ Low Insertion Loss

◆ Indoor Application

◆PIM-160dBc@2*43dBm

◆Widely used for In-building Solutions and Outdoor application.

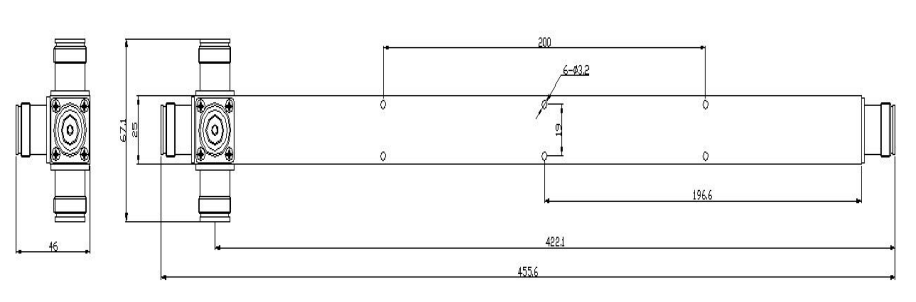

Technical &Mechanical Specifications

Model No.	MPS-327-02-4F-160	MPS-327-03-4F-160	MPS-327-04-4F-160
Freq(MHz)	380-2700MHz
Input	2-way	3-way	4-way
Split Loss(dB)	3.0	4.8	6.0
IL(dB)	≤0.4	≤0.6	≤0.6
VSWR	≤1.30
PIM(dBc)	≤-160dBc@2*43dBm
Power(W)	300 (average)
Impedance	50 ohm
Connector	4310-female
Color	Black
Temp(deg)	-30~+65
Application	Indoor or Outdoor IP65
Weight(kg)	0.68	0.73	0.78

OUR SERVICES
1. Professional skills support for 380-2700MHz 4310 Type Low PIM-160dBc 2Way/3Way/4Way Cavity Power Splitter/Divider/Combiner
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.

NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose

380-2700MHz 2 Way Cavity Power Splitter

380-2700MHz 3 Way Cavity Power Splitter

380-2700MHz 4Way Cavity Power Splitter

Leave Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : Wideband 380-2700MHz 4310 Type Cavity Power Splitter
Im interested in your "Wideband 380-2700MHz 4310 Type Cavity Power Splitter", please inform me more detailed product information and price. Thankyou!
