138-960MHz 2way Wilkinson Divider For Public Safety

138-960MHz 2 way Wilkinson Power Divider/Splitter with low insertion loss,low VSWR and widely used for public safety.

Item NO.:
MPS-190-02-NF
Lead Time:
According to quantity
Product Orgin:
China
Shipping Port:
Shanghai,shenzhen
Color:
red or customized
MOQ:
2

Inquiry now

Products Details

Product Name

2Way Power Splitter (138-960MHz,50W,N-female, IP65),Red Color,for Public Safety System

Product Features

◆ Wide Frequency Band

◆ Low VSWR

◆ Low Insertion Loss

◆ Indoor &Outdoor Application IP65

◆ Widely used for In-building Solutions and Public Safety system

Technical &Mechanical Specifications

Model No.	MPS-190-02-NF	MPS-190-03-NF	MPS-190-04-NF
Freq(MHz)	138-960	138-960	138-960
Output Port Number	2	3	4
Split Loss(dB)	3.0	4.8	6.0
IL(dB)	0.7	≤1.6	≤1.8
Isolation(dB)	20 min	18 min	16min
VSWR	≤1.30		≤1.35
Total Input Power(W)	50
Impedance	50 ohm
Connector	N-female
Color	Red
Temp(deg)	-30~+70
Application	Indoor or Outdoor, IP65

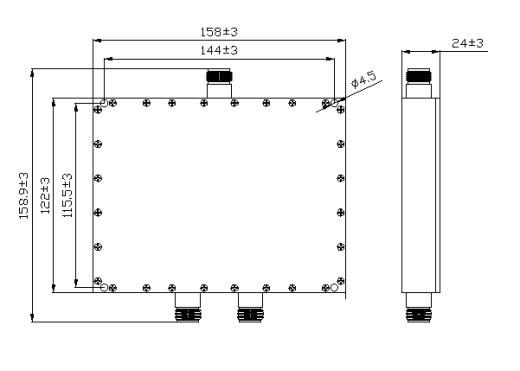

Size(mm)(exclude connector)	15812224	12215824	12215824
Weight(kg)	0.65	0.75	0.85

OUR SERVICES
1. Professional skills support for 2Way Power Splitter for Pulic Safety
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.
NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose

Power Splitter Public Safety 138-960MHz Wilkinson Splitter
