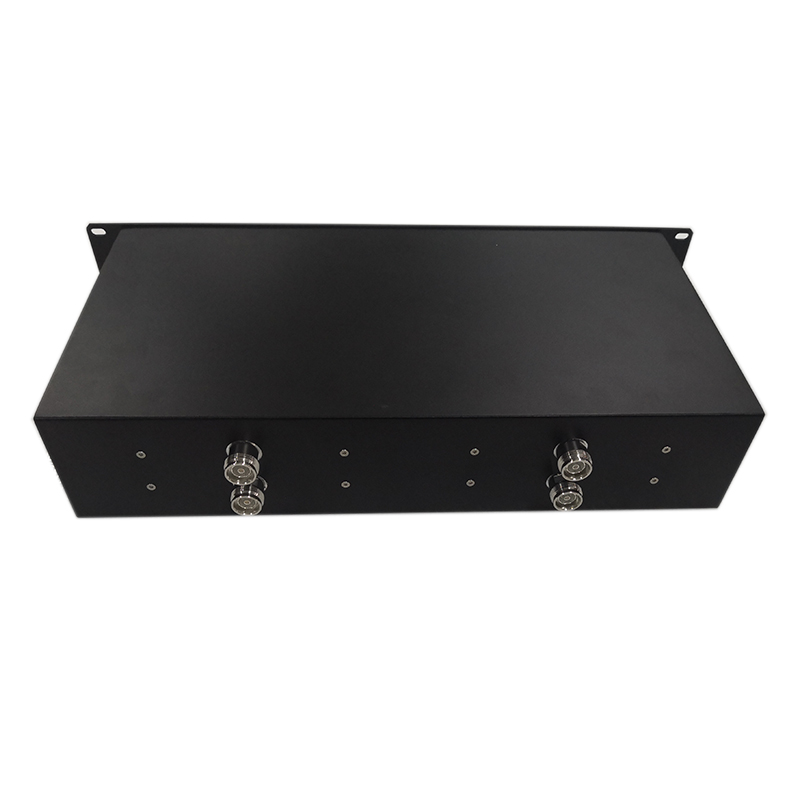

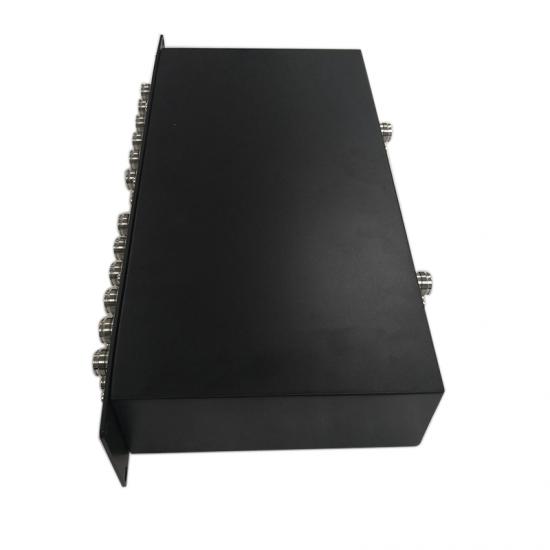

4 IN 24 OUT 600-6000MHz 4.3-10F Power Splitter

4 IN 24 OUT 600-6000MHz 4.3-10F Power Splitter

Wide Frequency Band 600-6000MHz,4 in 24 out,4.3-10-Female power splitter which has high performance like low VSWR and low Insertion Loss,is available to outdoor project and In-building Solutions.

Item NO.:
MPS-4-24-660-4F
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou/Ningbo
Color:
Black

Inquiry now

Products Details

Product Name

4 IN 24 OUT 600-6000MHz 4.3-10F Power Splitter

Produce Features

◆Wide Frequency Band 600-6000MHz

◆ Low VSWR

◆ Low Insertion Loss

◆ Indoor &Outdoor Application

◆Widely used for In-building Solutions

Technical &Mechanical Specifications

Frequency(MHz)	600-6000MHz
Input Port Number	4
Output Port Number	24
Insertion Loss(dB)	≤12 each port
Isolation(dB)	16min
VSWR	≤1.55
Total Input Power(W)	50W
Impedance	50 Ohm
Connector	4.3-10-Female
Temperature(deg)	-30~ +70
