RF Attenuator
Home /

RF Attenuator

 / DC-6GHz 3/6/10/15/30dB 20W RF Coaxial Attenuator With SMA Connector for IBS BTS

RF Coaxial Attenuator
RF Coaxial Attenuator RF Coaxial Attenuator RF Coaxial Attenuator RF Coaxial Attenuator

DC-6GHz 3/6/10/15/30dB 20W RF Coaxial Attenuator With SMA Connector for IBS BTS

 DC-6GHz 3/6/10/15/30dB 20W RF Coaxial Attenuator With SMA Connector for IBS BTS fr

  • Item NO.:

    MLA-20-6-03/06-S

  • Product Orgin:

    China

  • Brand:

    Maniron

  • Shipping Port:

    Shanghai/Ningbo/Shenzhen
Inquiry now
  • Products Details

Product Name

DC-6GHz 20W 3/6/10/15/30dB RF Coaxial Attenuator With SMA Connector for IBS BTS


Technical &Mechanical Specifications


Product Name  RF Coaxial Attenuator
Frequency Range
 DC-6GHz
Attenuation(dB)
 3/6
Accuracy(dB)
 ±0.6
VSWR
 ≤1.30
Average Power(W)   20@25℃
Normal Impedance
 50 ohm
Connector
 SMA-Male to SMA-Female
Color
 black
Ambient Temp(deg)
 -55~+100
Dimensions
 38*38*94(Connectors included)

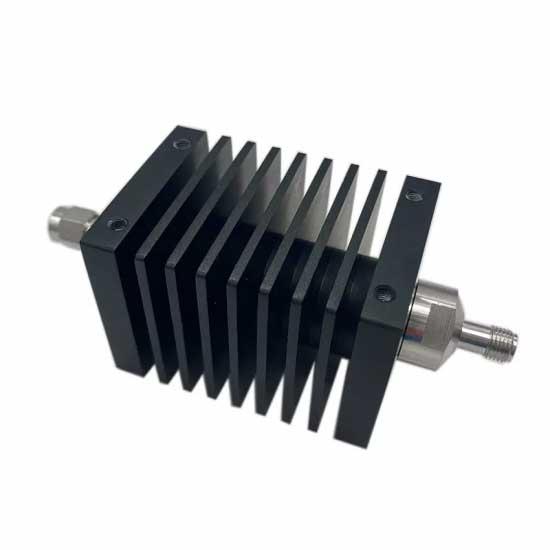

Product picture





OUR SERVICES

1. Professional skills support for RF Passive Products
2. OEM/ODM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.

NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose
