500W DC-12GHz 30dB Coaxial Attenuator with N Type Connector

500W DC-12GHz Coaxial Attenuator with N Type Connector has good performance like Low VSWR,Low Attenuation Accuracy,it widely used in telecommunication field

Item NO.:
MA-500-12G-XX
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou/Ningbo
Color:
Black or customized

Inquiry now

Products Details

Product Name

500W DC-12GHz fixed coaxial Attenuator with N Type Connector

Product Features

◆ Wide Frequency Band

◆ Low VSWR

◆Low Attenuation Accuracy

◆ Widely used for telecommunication system

Technical & Mechanical Specifications

Model No.	MA-500-12G-20	MA-500-12G-30	MA-500-12G-40	MA-500-12G-50
Freq(GHz)	DC-12GHz
Attenuation(dB)	20	30	40	50
Accuracy(dB)	5	+6.0/-0	±1.5	±1.5
VSWR	≤1.50
Average Power(W)	500
Impedance	50 ohm
Connector	N-M to N-F or N-F to N-F
Color	Black
Temp(deg)	-55~+125

Product Pictures

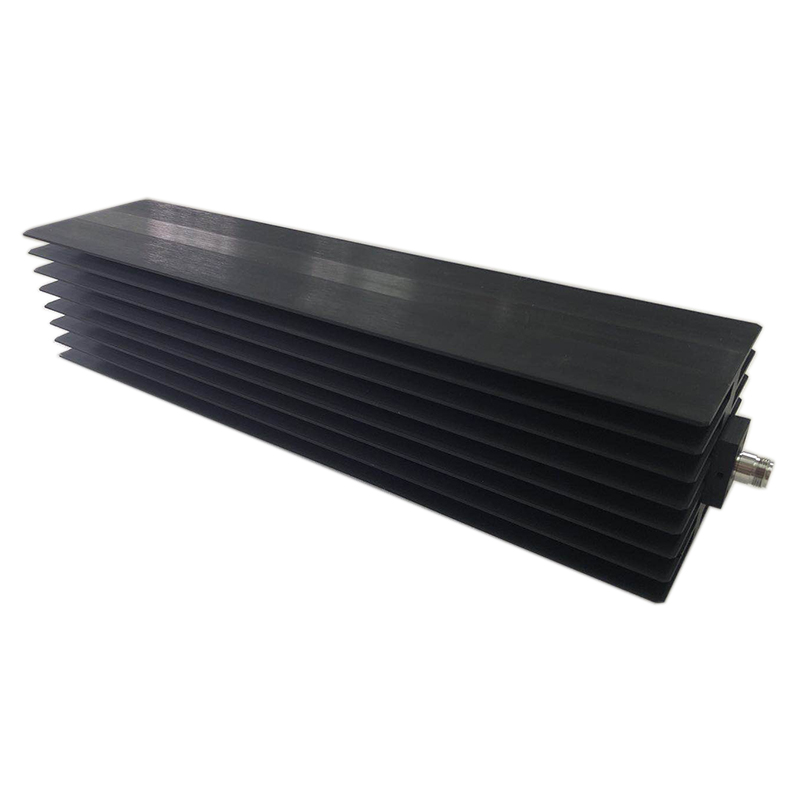

500W Attenuator
