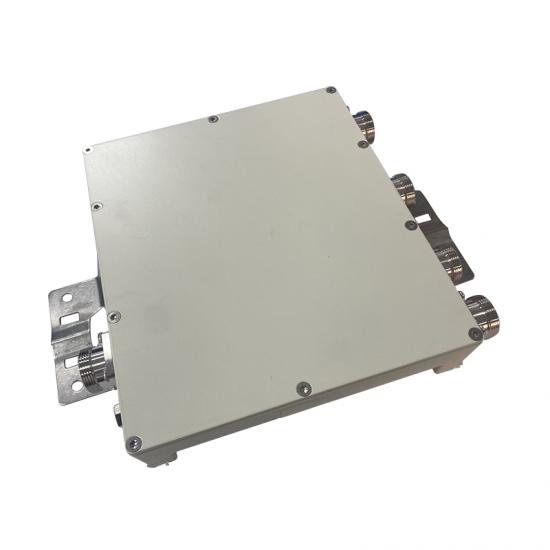

Low PIM Quadplexer 380-960MHz 1710-1880MHz 1920-2200MHz 2500-2690MHz

380-960MHz/1710-1880MHz/1920-2170MHz/2500-2690MHz quad band combiner-quadplexer, DIN female, PIM 155dBc

  • Item NO.:

    MQ-327-DF-S-155

  • MOQ:

    1
Inquiry now
  • Products Details

Product name

Quadplexer, Low PIM, DIN female


Product Features

Low insertion loss

High isolation between each input port  Modularity: Single

Available for outdoor applications

Connectors: 4.3/10 type female

Applications: wireless base station, Indoor DAS, metro coverage etc.



Technical &Mechanical Specifications

Electrical Specifications

Port

Band 1

Band 2

Band 3

Band 4

Frequency Range

380-960MHz

1710-1880MHz

1920-2170MHz

2500-2690MHz

Insertion Loss

＜0.5dB

＜0.5dB

＜0.5dB

＜0.5dB

VSWR

＜1.3

Power Rating

300W

300W

300W

300W

DC Pass

Yes

Yes

Yes

Yes

Isolation

≥50dB

PIM(3rd order)

≤-155dBc@2x43dBm

Impedance

50Ω

Mechanical Specifications

Weight

3.70Kgs

Dimensions

                                              See Drawings

Connector

4.3/10 type female or DIN or N female                    connector

Colour

Cool Grey

Operating Humidity

  5%-95%

Operating Temperature

-40 to 65ºC

Application

  Indoor or Outdoor

Mounting

Pole or Wall Mount

Waterproof grade

IP65
