4 Way TX Combiner with High Isolation
4 Way TX Combiner with High Isolation 4 Way TX Combiner with High Isolation 4 Way TX Combiner with High Isolation

Maniron UHF 400-470MHz 4 Way TX Combiner

UHF 4 Way TX Combiner covers wide frequency from 400-470MHz in Low Insertion loss and Low VSWR.

  • Item NO.:

    MNTXC-04-400

  • Product Orgin:

    China

  • Brand:

    Maniron

  • Shipping Port:

    Shanghai/Shenzhen/Ningbo

  • Color:

    Black
Inquiry now
  • Products Details

Product Name

400-470MHz 4 Way TX Combiner


Product Features

◆Compact, Low Weight

◆High Reliability

◆ Simple Installation


Technical &Mechanical Specifications

Frequency
                               400-470MHz
VSWR 1.3
Insertion loss ≤4.5dB
Isolation
≥60dB
Power handling
50W Avg
Frequency Spacing 250KHz
Connectors type N female

Customized specification is available


Product image

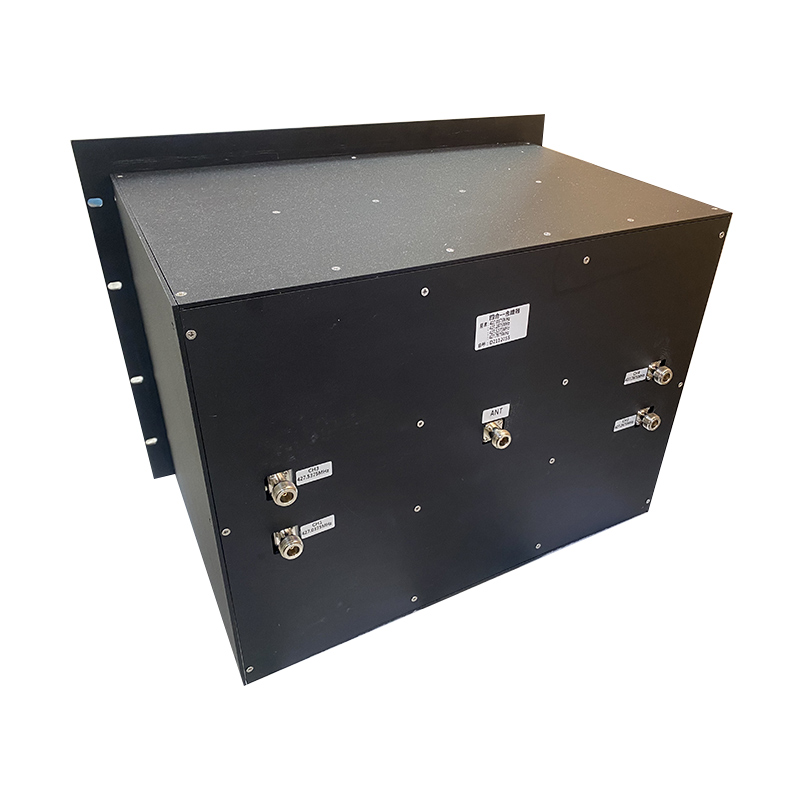

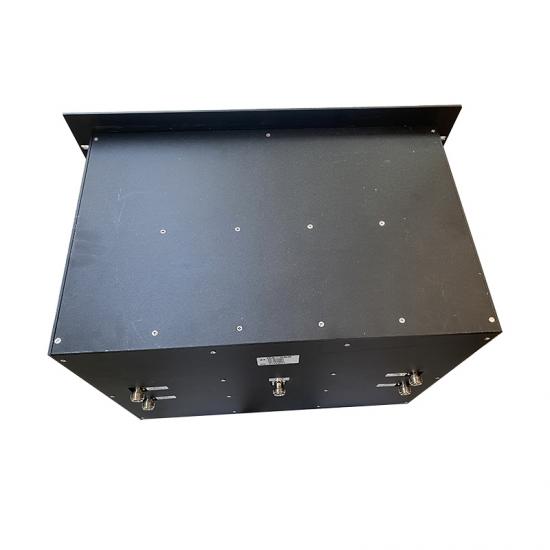

UHF 4 Way TX Combiner
