RF Combiner
Home /

RF Combiner

 / Maniron 800-3800MHz Low PIM Outdoor Penta-band Combiner

824-894 1710-1755/2110-2155 1850-1990 2500-2690 3300-3800MHz rf combiner
824-894 1710-1755/2110-2155 1850-1990 2500-2690 3300-3800MHz rf combiner 824-894 1710-1755/2110-2155 1850-1990 2500-2690 3300-3800MHz rf combiner 824-894 1710-1755/2110-2155 1850-1990 2500-2690 3300-3800MHz rf combiner

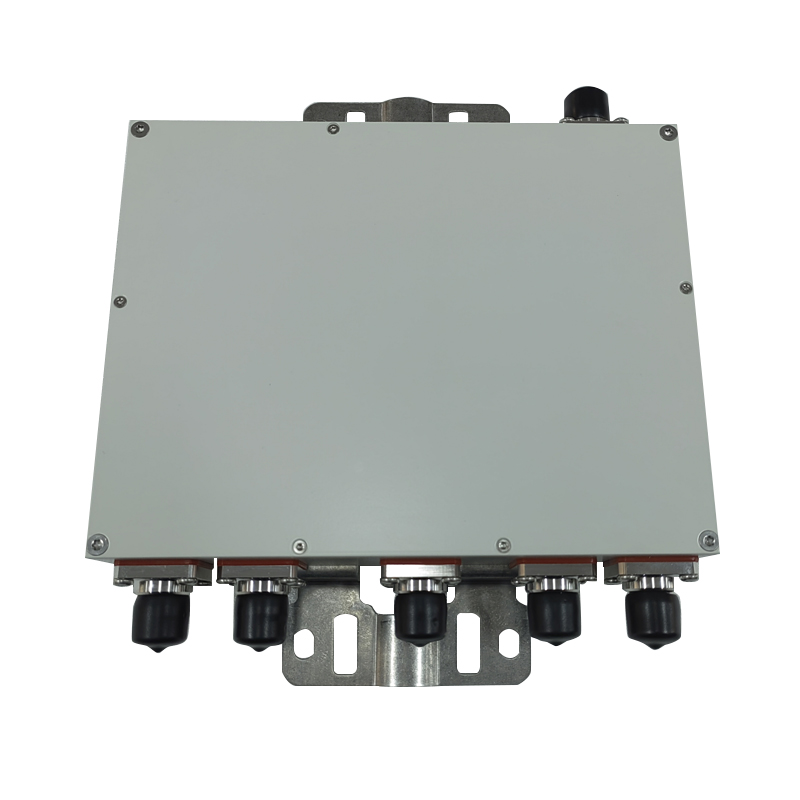

Maniron 800-3800MHz Low PIM Outdoor Penta-band Combiner

This Outdoor Penta-band Combiner covers frequency 824-894MHz 1710-1755/2110-2115MHz/1850-1990MHz 2500-2690MHz 3300-3800MHz with N/4.3-10/DIN-Female Connector,which is in Low PIM -153dBc

  • Item NO.:

    PM-AS-CM-CKPYH5-OQ4-

  • Product Orgin:

    China

  • Brand:

    Maniron

  • Shipping Port:

    Shanghai/Shenzhen/Ningbo

  • Color:

    Grey
Inquiry now
  • Products Details

Product Name



The penta-band Combiner is used for outdoor DAS



Product Features


◆Compact, low weight

◆Low PIM

◆High reliability

◆Simple installation

The penta-band combiner is in low PIM -153dBc.It's widely used for DAS/IBS



Technical &Mechanical Specifications

Frequency

824-894

1710-1755/2110-2155

1850-1990

2500-2690

3300-3800

Insertion Loss

≤0.30

≤0.32

≤0.30

≤0.32

≤0.30

Return Loss/VSWR

≤-19/1.25


Isolation

≥50

PIM3 at 2x43 dBm

≤-153

Impedance

50Ohm

Power, Avg

50




Product Pictures
 penta-band combiner
