RF Dual Band Combiner Diplexer
RF Dual Band Combiner Diplexer RF Dual Band Combiner Diplexer RF Dual Band Combiner Diplexer RF Dual Band Combiner Diplexer

758-805 806-869MHz RF Dual Band Combiner Diplexer

The Diplexer covers frequency from 758-775&788-805MHz,806-824&851-869MHz  which is in low pim -153dBc with N-F Connector

  • Item NO.:

    MDB-758/869-153-NF

  • Lead Time:

    According to quantity

  • Product Orgin:

    China

  • Brand:

    Maniron

  • Shipping Port:

    Shanghai,shenzhen,Guangzhou,Ningbo

  • Payment:

    FOB,CIF

  • Color:

    Red
Inquiry now
  • Products Details

Product Name

758-775&788-805MHz,806-824&851-869MHz Low PIM -153dBc RF Diplexer/Dual Band Combiner


Product Features

◆Compact, Low Weight

◆Low Passive Inter-modulation  -153dBc

◆High Reliability

◆ Simple Installation


This combiner,rf diplexer/duplexer covers frequency758-775&788-805MHz,806-824&851-869MHz,it is in low PIM -153dBc.


Technical &Mechanical Specifications

Frequency

CH1: DL:758-775MHz  UL:788-805MHz
CH2: DL:806-824MHz UL:851-869MHz
Insertion loss                            ≤4.0dB
Return Loss ≤-15
Isolation 18dB minimum
Power handling
50W(Average)
Impedance 50 Ohm
Connectors type N female
Operating temperature Range -20 to +60
Relative Humidity 5%-95%
Barometric pressure 55kPa-106KPa
Applications IP67
Color Pantone 200C Red


Pictures

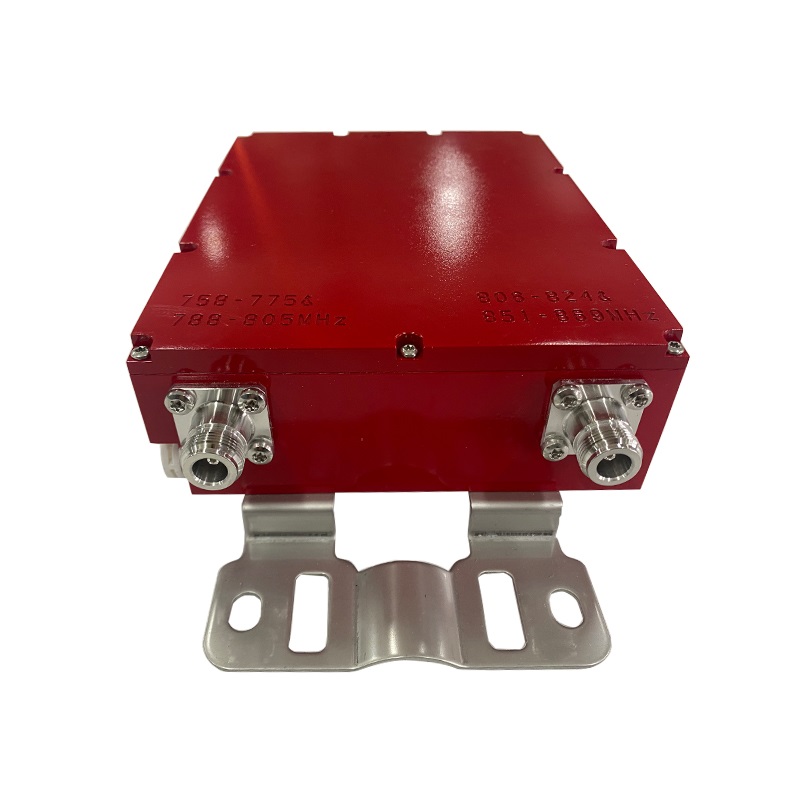

758-805 806-869MHz RF Dual Band Combiner Diplexer

758-805 806-869MHz RF Dual Band Combiner Diplexer


Available as a single unit or double unit

Enables antenna/feeder sharing for 700/800/900MHz networks

Low insertion loss & high return loss

Low passive IM performance

OEM and ODM service is available.


More details,pls contact us!
