RF Combiner
Home /

RF Combiner

 / 690-862, 880-960, 1710-1880 , 1920-2170, 2490-2690MHz RF Pentaband Combiner With 4.3-10 type female

penta band combiner
penta band combiner penta band combiner penta band combiner penta band combiner

690-862, 880-960, 1710-1880 , 1920-2170, 2490-2690MHz RF Pentaband Combiner With 4.3-10 type female

This penta band combiner, covers frequency 690-862, 880-960, 1710-1880 , 1920-2170, 2490-2690MHz for 5G, Low PIM, high isolation, low loss. It's easy for installation.

  • Item NO.:

    MNL-PC-6927-4F-155-D

  • Product Orgin:

    China

  • Brand:

    Maniron

  • Shipping Port:

    Shanghai/Shenzhen/Ningbo

  • Color:

    Grey
Inquiry now
  • Products Details

Product Name

690-862, 880-960, 1710-1880 , 1920-2170, 2490-2690MHz Single penta band combiner

Product Features

◆Compact, low weight

◆Low PIM

◆High reliability

◆Simple installation



Technical &Mechanical Specifications

Product Name

RF penta band combiner

Frequency Band(MHz)
 CH1:690-862MHz

CH2: 880-960MHz

CH3: 1710-1880MHz

CH4: 1920-2170MHz

CH5: 2490-2690MHz

VSWR
≤1.25
Isolation
≥50dB
Insertion Loss(dB)
≤0.5dB
Connectors type 4.3-10 female
Impedance
 50 Ohm
Power/Avg 150W

Lightning Protection

3kA; 10/350 μs pulse


PIM(dBc)Operating Temp. (℃)
≤155@2×43dBm
IP Rate
 65
Operating Temp. (℃)
 -20~+60

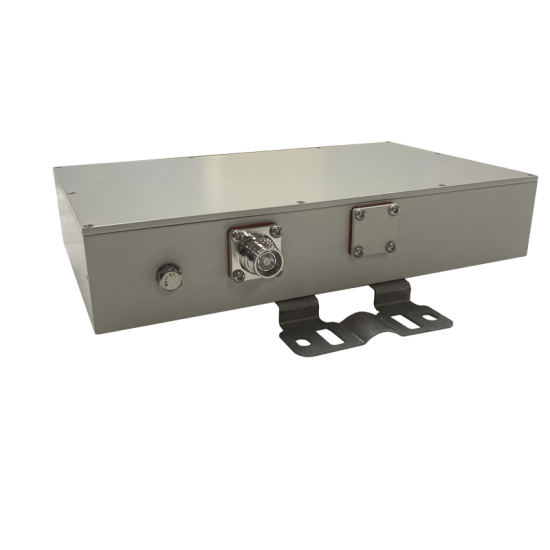

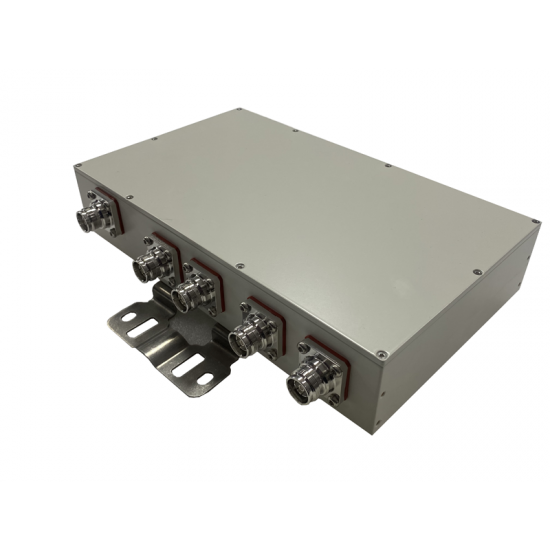

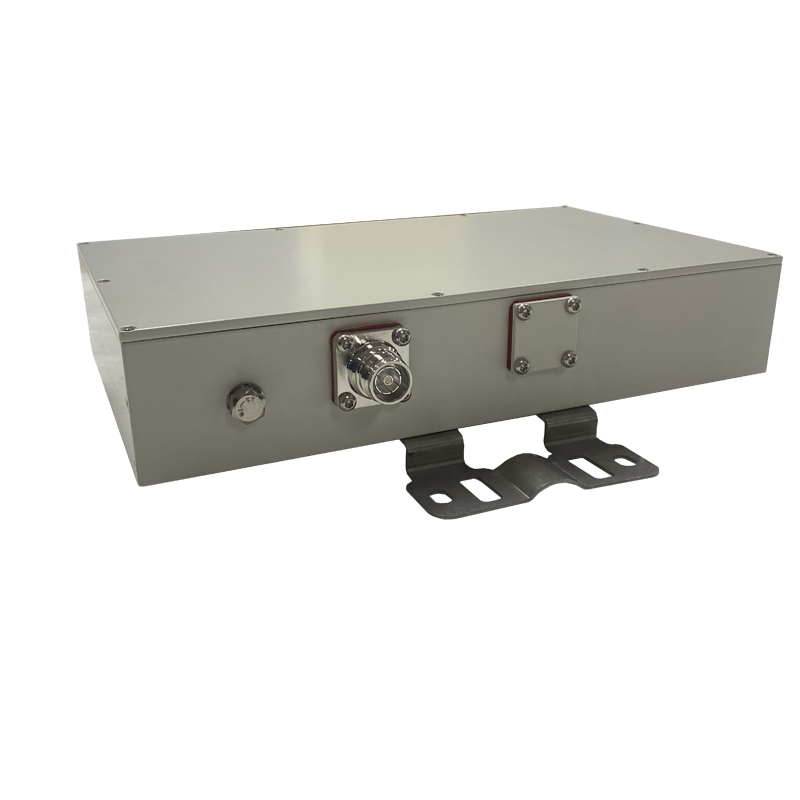

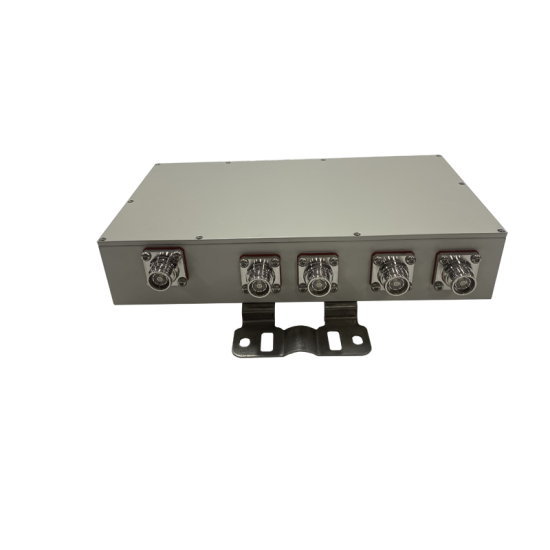

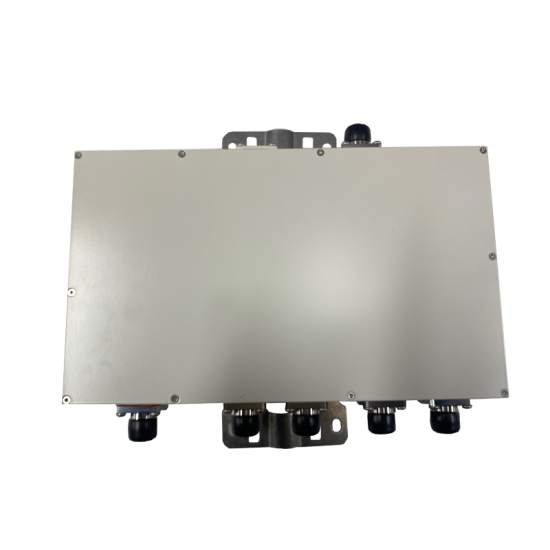

Product Pictures
