 / RF Telecom Parts 2.4-2.5&5.1-5.9GHz RF Diplexer SMAF

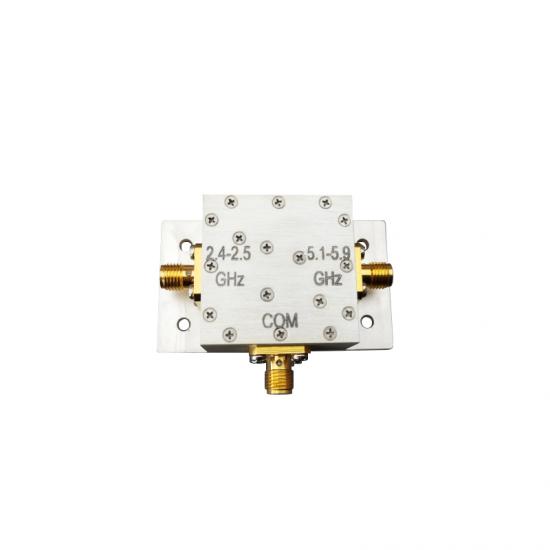

2.4-2.5&5.1-5.9GHz Diplexer
2.4-2.5&5.1-5.9GHz Diplexer 2.4-2.5&5.1-5.9GHz Diplexer 2.4-2.5&5.1-5.9GHz Diplexer

RF Telecom Parts 2.4-2.5&5.1-5.9GHz RF Diplexer SMAF

RF Diplexer covers frequency 2.4-2.5&5.1-5.9GHz for Wi-Fi communication systems,Mobile satellite,Private & public land mobile

  • Item NO.:

    MND-25-SMF

  • Product Orgin:

    China

  • Brand:

    Maniron

  • Shipping Port:

    Shanghai/Shenzhen/Guangzhou

  • Color:

    Grey

  • MOQ:

    1
Inquiry now
  • Products Details

Product Name


2.4-2.5&5.1-5.9GHz RF Diplexer

Product Features


• Low insertion loss


• Very good co-channel rejection


• Connectorized package



Technical &Mechanical Specifications

Frequency

Low Pass:2.4-2.5GHz

High Pass:5.1-5.9GHz

Return Loss

10dB(min)@ 2.4-2.5GHz

8dB(min)@ 5.1-5.9GHz

Insertion loss

Max 1.2dB@ 2.4-2.5GHz    (0.8dB Typ)

Max 1.7dB@ 5.1-5.9GHz    (0.9dB Typ)

Stop bandIsolation

38dB@ 2.4-2.5GHz    （45dB Typ）

[email protected]    （40dB Typ）

Power handling

1W

Impedance



50W

Product Photos

rf diplexer

Leave Message
