690-960&1710-1880&1920-2170&2300-2690&3300-4000MHz Pentaplexer
690-960&1710-1880&1920-2170&2300-2690&3300-4000MHz Pentaplexer 690-960&1710-1880&1920-2170&2300-2690&3300-4000MHz Pentaplexer 690-960&1710-1880&1920-2170&2300-2690&3300-4000MHz Pentaplexer

RF 690-960&1710-1880&1920-2170&2300-2690&3300-4000MHz Low PIM Pentaplexer with DINF

The Pentaplexer covers frequency from 690-960&1710-1880&1920-2170&2300-2690&3300-4000MHz which is in low pim -150dBc with DIN-F Connector

  • Item NO.:

    MPX-900/1800/2100/26

  • Product Orgin:

    China

  • Brand:

    Maniron

  • Shipping Port:

    Shanghai/Shenzhen

  • Color:

    Grey
Inquiry now
  • Products Details

Product Name

690-960&1710-1880&1920-2170&2300-2690&3300-4000MHz Low PIM -150dBc RF Pentaplexer Combiner


Product Features

◆Compact, Low Weight

◆Low Passive Inter-modulation  -150dBc

◆High Reliability

◆Simple Installation

This combiner,rf pentaplexer covers frequency 690 to 4000MHz,it is in low PIM -150dBc.


Technical &Mechanical Specifications

Frequency

          690-960&1710-1880&1920-2170&2300-2690&3300-4000MHz

VSWR

 ≤1.25

Insertion loss

     ≤0.5dB

Isolation

     ≥50dB

Input power

    200W

Intermodulation (3rd order)

        ≤-150dBc @ 2 x 43dBm

Impedance

      50Ohm

DC/AISG

By-Pass(max.3000mA)

Connectors type

 DIN female

Applications

        IP67

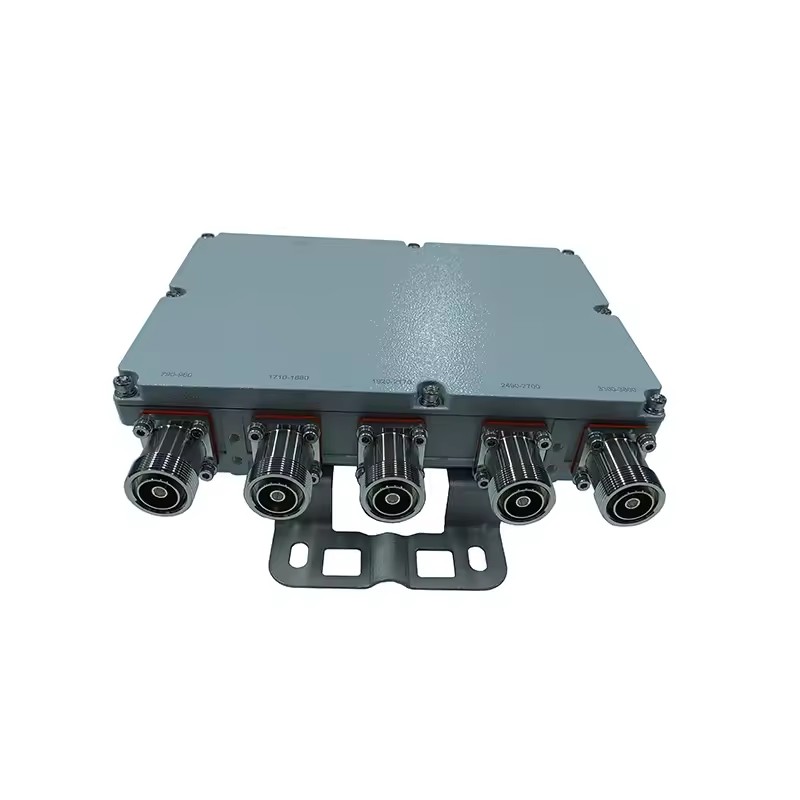

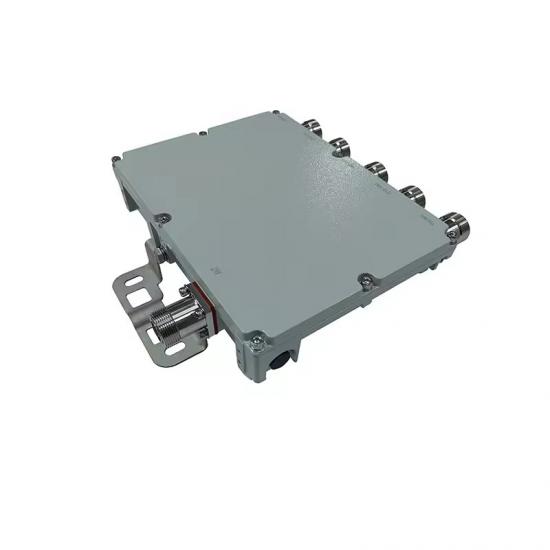

Pictures

pentaplexer

pentaplexer
