RF Combiner
Home /

RF Combiner

 / 800-2700MHz Low PIM -150dBc Penta-band Combiner

RF Combiner for DAS
RF Combiner for DAS RF Combiner for DAS RF Combiner for DAS

800-2700MHz Low PIM -150dBc Penta-band Combiner

Low PIM RF Penta-band Combiner covers frequency 824-960&1710-1880&1920-2170&2300-2400&2490-2690MHz,which is easy for installation.

  • Item NO.:

    M-PC-727-NF-150-S

  • Product Orgin:

    China

  • Brand:

    Maniron

  • Shipping Port:

    Shanghai/Shenzhen/Ningbo

  • Color:

    Grey
Inquiry now
  • Products Details

Product Name

Penta-band combiner


(824-960&1710-1880&1920-2170&2300-2400&2490-2690 N Female,

PIM,-150dBc)


It's wiedly used for Distributed Antenna System




Product Features

◆Compact, low weight

◆Low PIM

◆High reliability

◆Simple installation


Technical &Mechanical Specifications

Product Name
 RF combiner
Frequency Band(MHz)
P1: 824-960MHz
P2: 1710-1880MHz
P3: 1920-2170MHz
P4: 2300-2400MHz
P5: 2490-2690MHz
VSWR
≤1.3

Insertion Loss(dB)
 0.5Max
Port Isolation(dB)
 50min
Impedance
 50 Ohm
Connectors type
 N-Female
Max. Input Power (W)/each port

200 W Avg
1000W Peak



PIM(dBc)Operating Temp. (℃)
 ≥150@2×43dBm

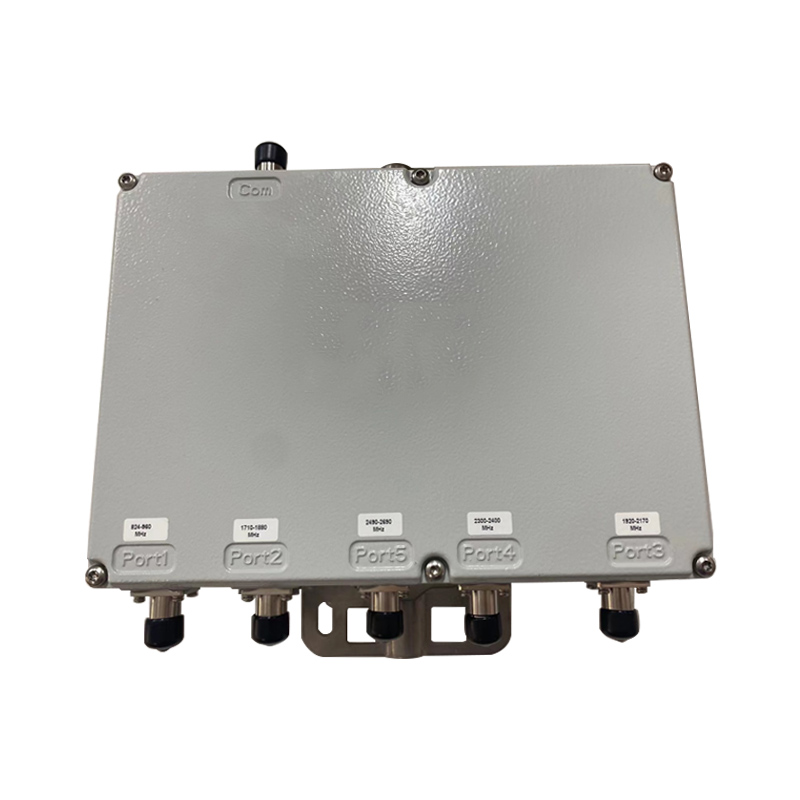

Product Pictures

800-2700mhz pentaband combiner
