RF Adapter N male to N male Straight Type

RF Adapter N male to N male Straight Type

RF Adapter N male to N male Straight Type has Low PIM and good performance, characteristic impedance is 50ohm. The characteristic of adapter is in wide working frequency, reliable connection,great vibration performance.

Item NO.:
MNA-NJJ
Product Orgin:
China
Shipping Port:
Shanghai/Ningbo/Shenzhen

Inquiry now

Products Details

Product Name

RF Adapter N male to N male Straight Type series is designed to meet the rising performance needs of mobile network equipment e.g. to connect the RRU to the antenna.The small size and low weight of these connectors do justice to the miniaturization of mobile radio network components.Three different coupling mechanisms of the plug connectors screw,quick-lock/push-pull and hand-screw types are mateable with all jack connectors.

Product Features

RF Adapter N Female to N male Straight Type is Low VSWR and excellent impedance matching

Technical &Mechanical Specifications

Model No.	MNA-NJJ
Interface	According to IEC 60169-4 IEC 60169-16
Electrical	Characteristic Impedance	50 ohm
	Frequency Range	DC-3GHz
	Dielectric Withstanding Voltage	≥2500V RMS,50Hz,at sea level
	Dielectric Resistance	≥10000M ohms
	Contact Resistance	Center Contact≤1.0M ohms Outer Contact≤1.5M ohms
	VSWR	≤1.25
	PIM	≤-155dBc
	Insertion Loss	≤0.5dB
Mechanical	Durability	Mating cycles≥500
Material and plating	Body	Brass or Tri-Alloy
	Insulator	PTFE
	Center Conductor	Tin-Phosphor bronze Ag
	Temp	-40~+85

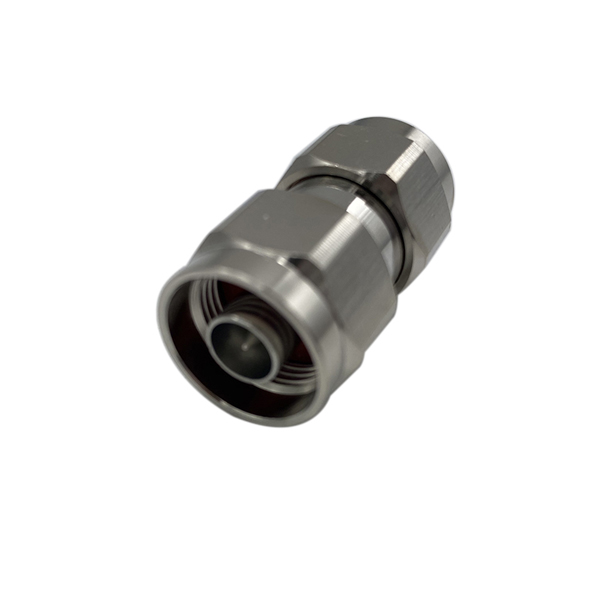

Product picture

rf adapter N male to n male

N male to N male adaptor

OUR SERVICES

1. Professional skills support for all kinds of adapters and connectors
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.

NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose
