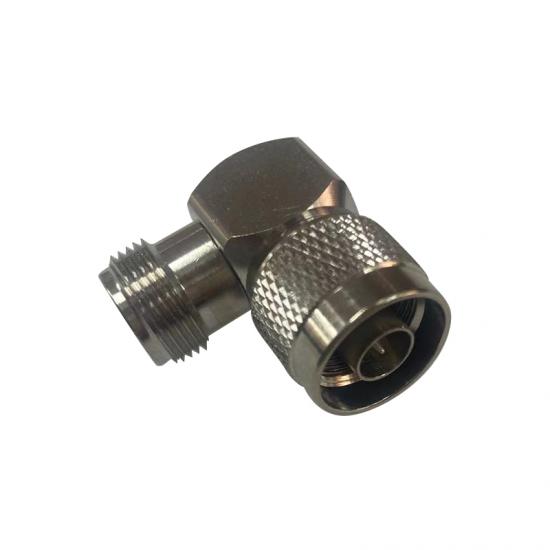

DC-3GHz N Male to N Femal Right Angle Adaptor

This connector covers frequency DC to 3GHz(N MALE to N-Female R/A Adaptor)with Low PIM and Low VSWR
  • Item NO.:

    MN-RA-NM-NF
  • Product Orgin:

    China
  • Brand:

    Maniron
  • Shipping Port:

    Shanghai/Shenzhen/Ningbo
  • Color:

    Silver
  • Products Details

Product Name

DC-3GHz N MALE to N Female R/A Adaptor with Low PIM&Low VSWR


Product Features

◆ Wide Frequency Band DC-3GHz

◆ Low VSWR&Low PIM

N Male to N Female RF Connector with DC to 3GHz which is durable and used for IBS DAS



Technical &Mechanical Specifications

Frequency
DC-3GHz
Impedance
50Ohm
VSWR
1.15
Dielectric Withstanding Voltage
≤ 1500V RMS,50Hz,at sea level
Dielectric Resistance
≥5000MΩ
Durability
Mating cycles ≥ 500

Pictures


Our Advantages

Hefei Maniron Electronic And Technology Co.,Ltd.,established in 2002,located in Hefei National Hi-tech Industry Development Zone,is a leading manufacture of RF Components.
OEM services are offered.
Maniron has a huge fellowship that is composed of many high-level technologists.
We also has established a Research Insititution which is a cooperating with some famous universties in China.


varies style, high quality, reasonable price and good service

Excelent engineers and profesional team

Full range of passives for 5G, frequency can be 380-6000MHz

Low PIM -165dBc is also our main advantage
