N Female Crimp Connector For RG174 Cable

N FEMALE CRIMP FOR RG174 CABLE has low loss and good performance, characteristic impedance is 50ohm. The characteristic of adapter is in wide working frequency, reliable connection,great vibration performance.

Item NO.:
MNC-NK-RG174
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Ningbo/Shenzhen

Inquiry now

Products Details

Product Name

N FEMALE CRIMP connector series is designed to meet the rising performance needs of mobile network equipment e.g. to connect with RG174 CABLE.The small size and low weight of these connectors do justice to the miniaturization of mobile radio network components.

Product Features

N Female Crimp Connector For RG174 Cable is Low VSWR and excellent impedance matching

Technical &Mechanical Specifications

Model No.	MNC-NK-RG174
Interface	According to IEC 60169-4 IEC 60169-16
Electrical	Characteristic Impedance	50 ohm
	Frequency Range	DC-6GHz
	Dielectric Withstanding Voltage	≥1000V RMS,50Hz,at sea level
	Dielectric Resistance	≥5000M ohms
	Contact Resistance	Center Contact≤3.0M ohms Outer Contact≤2.0M ohms
	VSWR	≤1.10
	Performance	Good
	Insertion Loss	≤0.5dB
Mechanical	Durability	Mating cycles≥500
Material and plating	Body	Brass Nickel plated
	Insulator	PTFE
	Center Conductor	Brass or Phosphor Bronze
	Temp	-40~+85

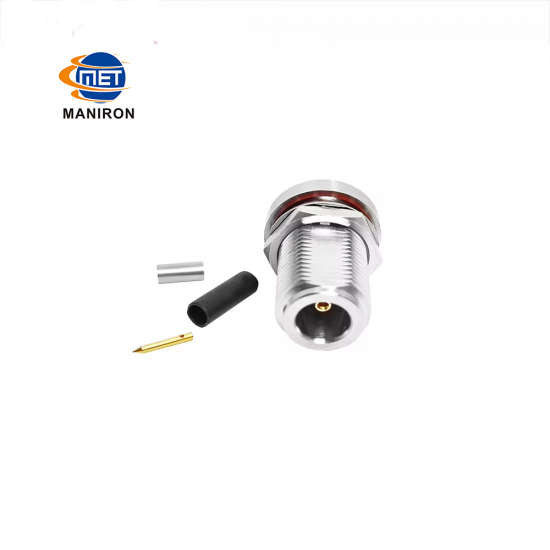

Product picture

OUR SERVICES

1. Professional skills support for all kinds of adapters and connectors
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.

NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose
