RF Adapter BNC Male to F female Straight Type

RF Adapter BNC Male to F Female Straight adapter has good performance, characteristic impedance is 50ohm. The characteristic of adapter is in wide working frequency, reliable connection,great vibration performance. It's a fresh new type of adapter.We have sold it to European market.

Item NO.:
MNA-BNCJ-FK
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Ningbo/Shenzhen
Payment:
FOB,CIF
MOQ:
20

Inquiry now

Products Details

Product Name

RF Adapter BNC Male to F female Straight Type is designed to meet the rising performance needs of mobile network equipment e.g. to connect the RRU to the antenna,or other components.The small size and low weight of these connectors do justice to the miniaturization of mobile radio network components.

Product Features

RF Adapter BNC Male to F female Straight Type is Low VSWR and good impedance matching.

Technical &Mechanical Specifications

Model No.	MNA-BNCJ-FK
Interface	According to IEC 60169-16
Electrical	Characteristic Impedance	50 ohm
	Frequency Range	DC-3GHz
	Dielectric Withstanding Voltage	≥2500V RMS,50Hz,at sea level
	Dielectric Resistance	≥5000M ohms
	Contact Resistance	Center Contact≤1.0M ohms Outer Contact≤0.25M ohms
	VSWR	≤1.25
	Manufacturer	Yes
	Insertion Loss	≤0.5dB
Mechanical	Durability	Mating cycles≥500
Material and plating	Body	Brass or Tri-Alloy
	Insulator	PT
	Center Conductor	Tin-Phosphor bronze Ag
	Temp	-40~+85

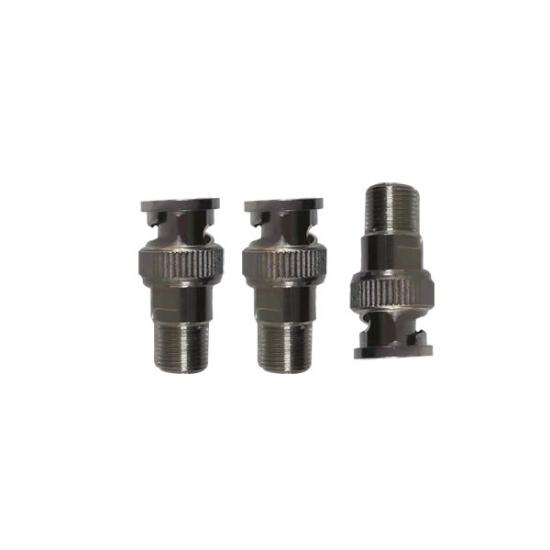

Product picture

RF Adapter BNC Male to F female Straight Type

OUR SERVICES

1. Professional skills support for RF Adapter BNC Male to F female Straight Type
2. OEM/ODM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.

NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose
