RF Adapter 7/16 DINF to 7/16 DINM Straight Type

RF Adapter DIN Female to DIN male Straight Type has Low PIM value and good VSWR, characteristic impedance is 50ohm. The characteristic of adapter is in wide working frequency, reliable connection,great vibration performance.As a professional manufacturer of adapter,Maniron produces super high quality RF Connector,RF Adapter,Custom RF cable assembly/Pigtail cable/Patch lead.
  • Item NO.:

    MNA-7/16K-7/16J
  • Product Orgin:

    China
  • Brand:

    Maniron
  • Shipping Port:

    Shanghai/Ningbo/Shenzhen
  • Products Details

Product Name

RF Adapter DIN Female to DIN male Straight Type series is designed to meet the rising performance needs of mobile network equipment e.g. to connect the RRU to the antenna.The small size and low weight of these connectors do justice to the miniaturization of mobile radio network components.Three different coupling mechanisms of the plug connectors screw,quick-lock/push-pull and hand-screw types are mateable with all jack connectors.


Product Features

RF Adapter DIN Female to DIN male Straight Type is Low VSWR and excellent impedance matching


Technical &Mechanical Specifications

Model No.

MNA-7/16K-7/16J

Interface

According to IEC 60169-4

                     IEC 60169-16

Electrical

Characteristic Impedance

50 ohm

Frequency Range

DC-6GHz

Dielectric Withstanding Voltage

≥2500V RMS,50Hz,at sea level

Dielectric Resistance

≥10000M ohms

Contact Resistance

Center Contact≤1.0M ohms

Outer Contact≤1.5M ohms

VSWR

≤1.15

PIM

≤-160dBc

Insertion Loss

≤0.5dB

Mechanical

Durability

Mating cycles≥500

Material and plating

Body

Brass  or Tri-Alloy

Insulator

PTFE

Center Conductor

Tin-Phosphor bronze     Ag

Temp

-40~+85

Product picture

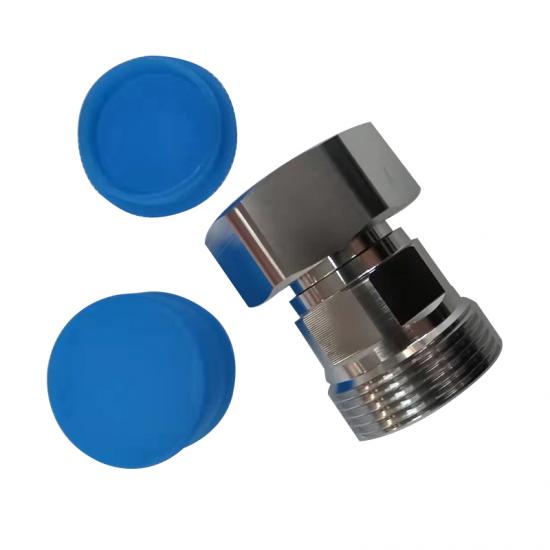

RF Adapter DIN Female to DIN male Straight Type

OUR SERVICES

1. Professional skills support for RF Adapter DIN Female to DIN male Straight Type
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.

NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose
