4.3-10 Type DC-6GHz Lightning Arrestor
4.3-10 Type DC-6GHz Lightning Arrestor 4.3-10 Type DC-6GHz Lightning Arrestor 4.3-10 Type DC-6GHz Lightning Arrestor

4.3-10 Type DC-6GHz Bulkhead Surge Protector Lightning Arrestor

Designed for antenna coaxial device and receive/transmit system not to be spoiled by lightning over-voltage, induced over-voltage and static discharge

  • Item NO.:

    MLA-6-4F/F

  • Product Orgin:

    China

  • Brand:

    Maniron

  • Shipping Port:

    Shanghai/Shenzhen/Guangzhou
Inquiry now
  • Products Details


Product Name

DC-6GHz bulkhead Surge Protector is wide frequency,is also DC-6GHz Lightning arrestor with 4.3/10 Female to Female


Product Features

◆ Wide Frequency Band

◆ 2G/3G/4G/5G LTE Coverage

◆ Low VSWR

◆Easily Replaced Gas Tube Element

◆Multi-Strike Capability


Technical &Mechanical Specifications

Model No.

                                                          MLA-6-4F/F

Executive standard

DB18802.1 , IEC61643-21, IEC60169-4

Frequency

DC-6GHz

VSWR

≤1.3,typ≤1.15

Insertion Loss

≤0.6dB

Transmission power

400w

DC operating voltage Uc

75V

Voltage protection level Up

90V

Maximum impluse discharge current

10kA

Ground wire diameter

≤4 mm2

Impedance (ohm)

50

Connector

2*4.3/10--Female

Relative humidity

≤95%（Temperature 25℃±2℃）

Temperature Range(deg)

-40~+85



Material

Plating

Body

Brass

Tri-alloy

Insulator

PTFE

-

Center conductor

Brass

Gold

Connection sleeve

Brass

Ni

O-Ring Material

Rubber

-

4.3-10 Type DC-6GHz Lightining Arrestor4.3-10 Type DC-6GHz Lightining Arrestor

Leave Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
Lightning Arrestor
Gas-tube Arrester
● Gas-tube Structure ● Easily Replaced Gas Tube Element ● Reliable Performance from DC to 6GHz ● Multi-Strike Capability ● Bi-Directional Protection ● DC passed ● RoHS Compliant
DC-5GHz Gas-tube Arrestor
Newly DC-5GHz 500W Low VSWR Lightning Arrestor
  ● Gas-tube Structure ● Easily Replaced Gas Tube Element ● Reliable Performance from DC to 6GHz ● Multi-Strike Capability ● Bi-Directional Protection ● DC passed ● RoHS Compliant The Gas-tube Structure covers frequency from DC to 5GHz
DC-3GHz bulkhead Surge Protector
N type DC-3GHz bulkhead Surge Protector Lightning arrestor
Designed for antenna coaxial device and receive/transmit system not to be spoiled by lightning over-voltage, induced over-voltage and static discharge
4.3-10 Type DC-3GHz Surge Protector
4.3-10 Type DC-3GHz Bulkhead Surge Protector Lightning Arrestor
Designed for antenna coaxial device and receive/transmit system not to be spoiled by lightning over-voltage, induced over-voltage and static discharge
TNC-F to TNC-M surge protector
Maniron DC-2.5GHz Low VSWR RF Lightning Arrestor
The Gas-tube Structure covers frequency from DC to 2.5GHz,which is in low VSWR with TNC-M to TNC-F connector.And it can be customized according to customers' requirements.
Wide frequency rf surge protector
High Quality DC-6GHz N Male to N Female Lightning Arrestor
The Gas-tube Structure covers frequency from DC to 6GHz with N Male to N Female Connector
Low VSWR Surge Protector
High Quality DC-3GHz 400W N male to N Female Lightning Arrestor
The Gas-tube Arrestor covers frequency from DC to 3GHz with N Male to N Female Connector
DC-6GHz 4.3-10 Lightning Arrestor
DC-6GHz 4.3/10 male to female Lightning Arrestor with grounding
DC-6GHz 4.3/10 type Lightning Arrestor Designed for antenna coaxial device and receive/transmit system not to be spoiled by lightning over-voltage, induced over-voltage and static discharge
4.3-10 Type DC-6GHz Surge Protector
4.3-10 Type DC-6GHz Surge Protector Lightning Arrestor with grounding
4.3-10 Type DC-6GHz Surge Protector/Lightning Arrestor is designed for antenna coaxial device and receive/transmit system not to be spoiled by lightning over-voltage, induced over-voltage and static discharge
380- 512MHz Surge Protector
Coaxial uhf 380- 512MHz rf Surge Protector
Coaxial uhf 380- 512MHz rf surge protector is designed for antenna coaxial device and receive/transmit system not to be spoiled by lightning over-voltage, induced over-voltage and static discharge
10dB directional coupler
10dB 698-4000MHz 5G directional coupler
5G 698-4000MHz directional coupler, 3dB/6dB/10dB/15dB/20dB Low PIM, High Isolation, Low Insertion loss
step attenuator
Key step attenuator Attenuator for telecommunication
DC-3GHz step Attenuator is Low Attenuation Accuracy and Widely used in 2G/3G Coverage High Quality Made in China.
DC-3GHz 200W Load
200W DC-3GHz RF Termination Load with N 4.3-10 DIN Connector
DC-3GHz RF Termination Load is can handle to 200W Power
low pim 3 in 3 out hybrid coupler with 4.3-10 type
Maniron 600-6000MHz -161dBc 3x3 Hybrid Combiner
600-6000MHz 3x3 Hybrid Coupler/Combiner with 4.3/10-female connector,low PIM-161dBc@2*43dBm
617-6000MHZ 5.5dBi Low PIM Indoor MIMO Omni Antenna
617-6000MHz 5.5dBi Low PIM Indoor MIMO Omni Antenna
The MIMO Omni antenna has excellent PIM performance and high gain with 2xN Female or 2x4.3/10 Female connector,coverage GSM/CDMA/PCS/3G/4G/5G
low PIM -153dBc RF Diplexer
High Quality Wholesale 1710-1880MHz/2300-2690MHz RF Dual Band Combiner with 4.3-10-F
RF Diplexer covers frequency 1710-1880MHz/2300-2690MHzMHZ for IBS DAS with Low PIM -153dBc
DC-3GHz 25W Attenuator
25W DC-3GHz 3dB RF Attenuator with N Connector Type
DC-3GHz 25W RF Attenuator is widely used for In-building Solutions.
4000-12000MHz 600W Directional Coupler For DAS IBS
4000-12000MHz 600W Directional Coupler For DAS IBS
4000-12000MHz  600W directional coupler with N-Female Connector
10W 6G RF Dummy Load Termination Load
10W DC-6G RF Termination Load SMA Male Connector
DC-6GHz 10W RF Termination Load,which is widely used for In-building Solutions
50W RF Bandpass Filter
50W RF Bandpass Filter 920.1 to 922.8MHz
50W RF Bandpass Filter is small in size, light in weight, excellent in performance and reliable in reliability.
1400-1700MHz coaxial circulator
1400-1700MHz high isolation coaxial circulator with N-Female
1400-1700MHz Coaxial Circulator is high isolation and widely used for Military,Space and Commercial Applications
-160dBc RF Hybrid Combiner with 4.3-10 Connector
RF 698-3800MHz 4 In 4 Out Hybrid Combiner Low PIM
4 in 4 out Hybrid Coupler/Combiner with 4.3-10-male Connector which covers frequency from 698 to 3800MHz
8000-40000mhz wilkinson power splitter
Wholesale 8000-40000MHz 20W Wilkinson 2 Way Power Splitter
Wilkinson/Microstrip 2 Way Power Splitter covers frequency from 8000-40000MHz,which is widely used for 5G Market.It has low insertion loss, VSWR and indoor Application IP67.
5W NEX10 RF Load
DC-6G 5W Nex10 Male Low VSWR RF Termination Load
DC-6GHz 5W RF Termination Loads is in Low VSWR for IBS
low Pim rf adaptor with high quality
DC-6GHz DIN Male to N Female RF Adaptor with Low PIM -160dBC
RF Adapter DIN-Male to N-Female Straight covers frequency from DC to 6GHz,it has low PIM -160dBC
RF Adapter DIN male to DIN male Straight Type
RF Adapter DIN male to DIN male Straight Type
RF Adapter DIN male to DIN male Straight Type has Low PIM -160dBc and good performance, characteristic impedance is 50ohm. The characteristic of adapter is in wide working frequency, reliable connection,great vibration performance.
DIN Male Right Angle RF Connector
RF DIN Male 7/16 Right Angle Connector for 1/2 Superflex Cable
DIN Male 7/16 Right Angle Plug RF Connector provide superior performance for both return loss and intermodulation distortion.
2way wilkinson power splitter
Low PIM 88-520MHz 2 Way Wilkinson Power Splitter with N-F connector
50W,88-520MHz Wilkinson/Microstrip Power Splitter has Low PIM performance,widely used for In-building Solutions.
single unit diplexer
Diplexer (Single Unit) 88-470/698-2700MHz, 200W, 4.3-10 F, -155dBc, IP65
RF Diplexer Combiner covers frequency 88-470/698-2700MHz with 4.3-10-Female Connector,which is in Low PIM -155dBc
RF 25W attenuator
DC-18GHz 25W RF Coaxial Attenuator
Maniron DC-18GHz RF Coaxial Attenuator contains 1w/5w/10w/50w/100w/200w/500w etc.We could make it with SMA J-K,N J-K,DIN J-K or 4310 J-K. If you have any other request, please contact us now.
VHF Duplexer
VHF 146.1-147.7MHz 30W RF Cavity Duplexer Diplexer With N-Female Connector
The VHF 146.1-147.7MHz 30W  Duplexer  for Radio Repeater or Mobile Radio
DC-6GHz N type 2W RF Coaxial Attenuator
DC-6GHz N type 2W RF Coaxial Attenuator With High Performance
DC-6GHz N 2W RF coaxial Attenuator is wide frequency band,used in DAS/IBS.
380- 512MHz Surge Protector
Coaxial uhf 380- 512MHz rf Surge Protector
Coaxial uhf 380- 512MHz rf surge protector is designed for antenna coaxial device and receive/transmit system not to be spoiled by lightning over-voltage, induced over-voltage and static discharge
RF Quadband combiner for 5G DAS
Maniron 698-960/1710-2170/2400-2700/3300-3800MHz Quadplexer Combiner
RF Quad band combiner covers frequency 698-960/1710-2170/2400-2700/3300-3800MHz,it's in low PIM -155dBc,which is widely used for DAS
Band Pass Filter
400-470 MHz 3 cavities Band Pass Filter
The Band Pass Filter consists of 3 quarter wavelength cavities. The housing is made of extruded aluminium, the chassis of galvanized steel. The filter is black coated prevent corrosion.
30W VHF duplexer
30W VHF 136-174MHz cavity duplexer N female
Stable VHF 30W  Duplexer for Radio Repeater or Mobile Radio
2in 1out Hybrid Coupler
2 in 1 out Hybrid Coupler (617-2700MHz, 40W, 4.3-10 F, PIM-160dBc)
2 in 1 out Hybrid Coupler (617-2700MHz, 40W, 4.3-10 F, PIM-160dBc)
Low PIM 2Way Wilkinson Divider
698-2700MHz Low PIM 2way Wilkinson Power Divider
698-2700MHz RF Passive Components 2Way Wilkinson/Microstrip Power Splitter/Divider with 4310-F,it is low insertion loss,low VSWR,Low PIM value
UHF Power Splitter
300-500MHz UHF 2 way Microstrip Power Splitter Divider
UHF Power Splitter has low frequency band 300-500MHz,which is widely used for 3G 4G Market.It has low PIM Value,low insertion loss and VSWR
MIMO Omni Antenna
Maniron 698-4000MHz Low PIM -150dBc MIMO Omni Ceiling Antenna
It's 2x2 MIMO Omni Antenna,coveres frequency from 698-4000MHz with Low PIM.It's easy for install.
RF Adapter N male to N male Straight Type
RF Adapter N male to N male Straight Type
RF Adapter N male to N male Straight Type has Low PIM and good performance, characteristic impedance is 50ohm. The characteristic of adapter is in wide working frequency, reliable connection,great vibration performance.
RF Quadplexer Combiner For 5G
5G 698-3800MHz RF Quadplexer Combiner 4.3-10 Female Connector
High Reliability Single Unit Quadplexer Covers 698-960/1710-2170/2300-2690/3300-3800MHz with 4.3-10 Female Connector,Low PIM -155dBc and Low Passive Inter-modulation.
VHF Duplexer
VHF 154-164MHz 50W Duplexer
VHF 50w 6 Cavity Duplexer with 138-174MHz,UHF with 350-520MHz For Walkie Talkie Two Way Radio Repeater
RF Duplexer
High quality 30Watt 137-180MHz Duplexer with N-Female/BNC-Female for Radio Repeater or Mobile Radio
RF Connector,N Male for Leaky Feeder 1-1/4" Cable,it has low PIM -150dBc.
RF Dual Band Combiner for 5G DAS
698-960 MHz /1710-2170MHz Dual Band Combiner with NF
Dual Band Combiner covers frequency 698-960 MHz /1710-2170MHz,it's in low PIM -150dBc,which is widely used for DAS

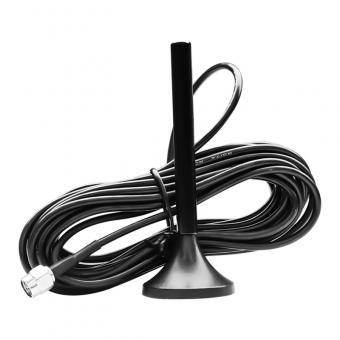

Magnetic Antenna
