Manufacturer Cheap Price Lightning Arrestor Gas Discharge Tube Type DC-6GHz 500W Lightning Arrester With 4.3-10 Female To Female

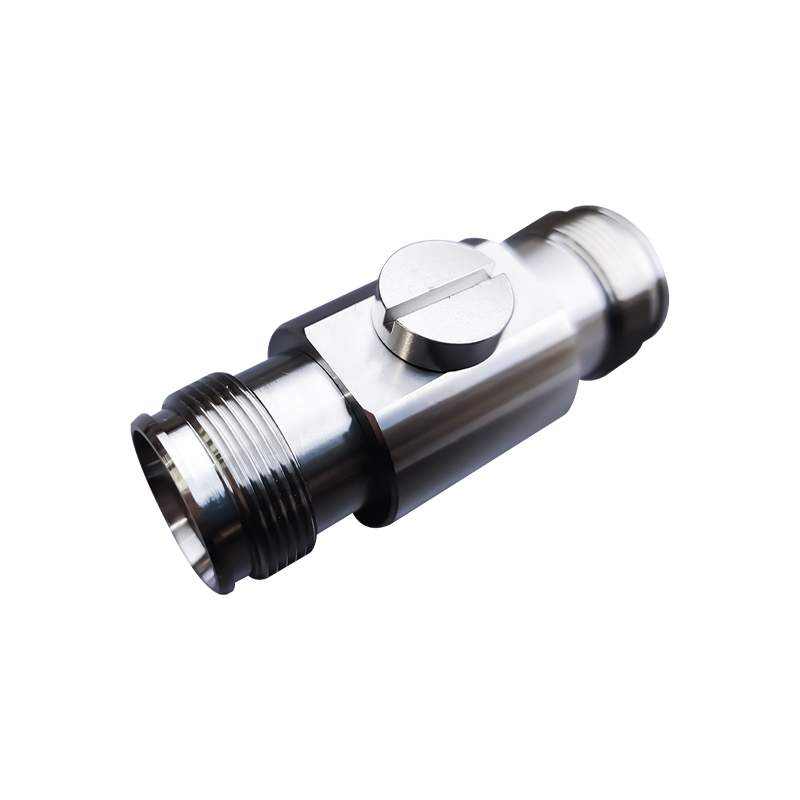

Lightning Arrestor Covers Frequency DC-6GHz  500W With 4.3-10 Female To Female
  • Item NO.:

    IEC 60169-54
  • Product Orgin:

    China
  • Brand:

    Maniron
  • Shipping Port:

    Shanghai/Shenzhen/Ningbo
  • Color:

    Silver
  • Products Details

Product Name

DC-6GHz Lighting Arrestor



Product Features

◆ Wide Frequency Band

◆ 2G/3G/4G/LTE Coverage

◆ Low VSWR

◆Easily Replaced Gas Tube Element

◆Multi-Strike Capability

It is Surge Protector which is Designed for antenna coaxial device and receive/transmit system not to be spoiled by lightning over-voltage, induced over-voltage and static discharge..It's in wide frequency.And it can be customized according to customers' requirements.


Technical &Mechanical Specifications



Frequency Range


DC-6GHz



VSWR


≤1.3


Insertion Loss

≤0.3dB



Rated DC voltage


90V/230V


Maximum impluse discharge current


20kA


Maximum power


500W


Ground wire diameter


≤4 mm2


Dielectric Withstanding Voltage


≥2500V RMS,50hz,at sea level

Temperature Range


-45℃ ~ +125℃


Durability


≥500 cycles


According to


IEC 60169-54


Pictures
