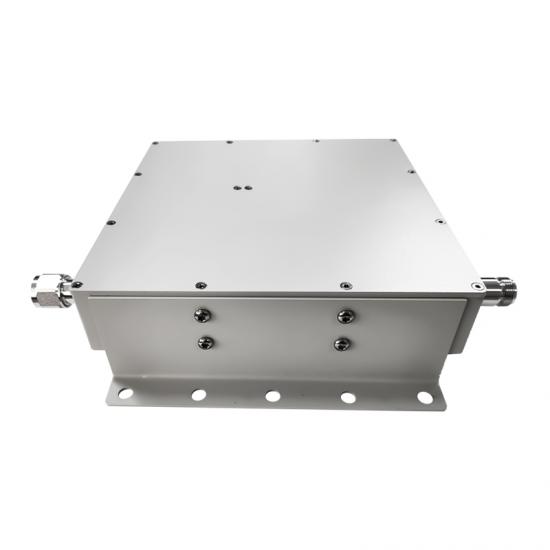

Customized 3/4/5/6/7/8/9dB 698-5000MHz Low PIM Attenuator RF Passive device 50W Telecom parts high quality Attenuator

Customized RF Passive device 3/4/5/6/7/8/9dB 698-5000MHz 50W Low PIM Attenuator is Widely used for indoor and outdoor Solutions

Item NO.:
MNA-50W-0650-155-XdB
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou/Ningbo
Color:
grey or customized

Inquiry now

Products Details

Product Name:

50W RF ATTENUATORS (698-5000MHz, N-Male/Female, -155dBc)

Product Feature:

◆ Wide Frequency Band

◆ 2G/3G/4G/LTE Coverage

◆ Low VSWR

◆ Widely used for indoor and outdoor Solutions

Technical &Mechanical Specifications:

Model No.	MNA-50W-0650-155-XdB-NMF
Frequency	698-3000MHz 3000~5000MHz
VSWR	698-3000MHz≤1.3 3000~5000MHz≤1.35
Attenuation (dB)	3 4 5 6 7 8 9 10
Accuracy(dB)	±1.3±1.3±1.3±1.3±1.3±1.3±1.3±1.5
Impedance	50Ω
PIM	-155dBc (2×20W) ((698－3500MHz))
Average Power(W)	50W
Connectors type	N- Male/Female
Operating temperature range	-30°C to +60°C
Applications	IP67
Color	Black
Weight	2.98KG
Packing	1Pce in box

Outline drawing:
