698-2700MHz Outdoor Directional Pole Mount Panel Antenna

Maniron Low PIM 698-2700MHz 5.5/8.5dBi 4-Port Outdoor Directional Pole Mount Panel Antennas

4-Port Outdoor Directional Pole Mount Panel Antennas is used in the wide wave band. With wide frequency, high gain and low PIM, it can be widely used for DAS.

Item NO.:
MOA-698-2700-8.5-NF/
Lead Time:
7-10 days
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen
Color:
White
MOQ:
1

Inquiry now

Products Details

Product Name

Maniron 698-2700MHz 4-Port Outdoor Directional Pole Mount Panel Antenna

Product Features

◆ Wide Frequency Band 698-2700MHz

◆ Low VSWR

◆ High Gain

◆ Widely used for DAS

Technical &Mechanical Specifications

Electrical Specifications
Frequency Range(MHz)	698-960	1710-2700
Gain(dBi)	5.5	8.5
VSWR	≤2.0	≤2.0
Polarization	Horizontal + Vertical
Isolation(dB)	≥12	≥20
Front to Back Ratio(dB)	≥7	≥13
PIM, 3rd Order, 2x20W(dBc)	≤-140 \| -150 \| -153
Horizontal Beam width	130-85°	95-58°
Vertical Beam width	108-78°	83-45°
Input Impedance	50 Ω
Max. Input Power	50 W
Mechanical Specifications
Connector	4xN \| 4.3-10 Female
Dimensions(mm)	393x317x80
Weight(kg)	1.5
Radome Material	ABS
Operating Temperature	-40°C to +65°C
Mounting	Wall Mount \| Pole Mount

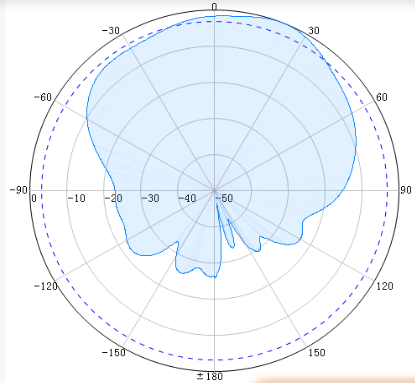

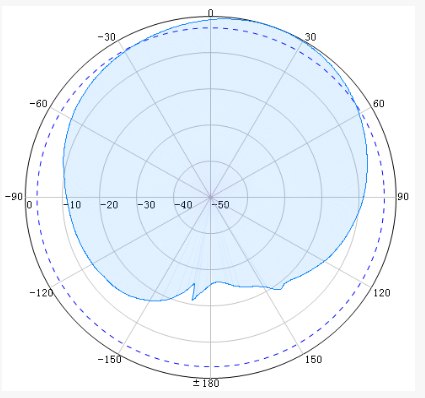

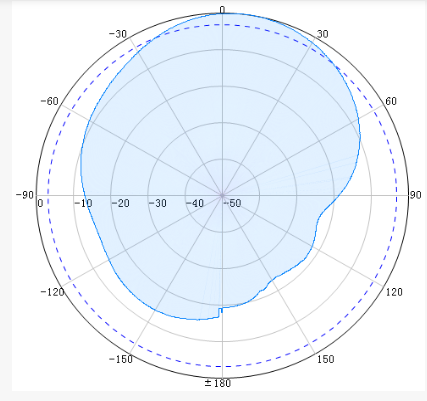

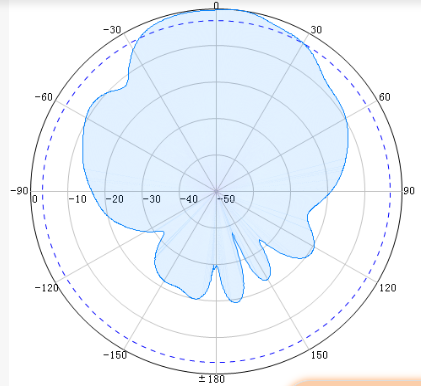

Horizontal
Vertical
	700-960MHz	1710-2700MHz
