800-2700MHz 2/5dBi Omni Ceiling Antenna

800-2700MHz 2/5dBi Omni Ceiling Antenna

Omni ceiling antenna is designed to be mounted in a suspended ceiling and provides better indoor coverage than a standard whip antenna.Omni ceiling antenna is compatible with GSM900, GSM1800 and 3G UMTS 2100 networks. This indoor ceiling aerial is suitable for almost all of the repeater kits.

  • Item NO.:

    MNOA-800-2700-2/5-NF

  • Lead Time:

    5-10day

  • Product Orgin:

    China

  • Brand:

    Maniron

  • Shipping Port:

    Shanghai/Shenzhen/NingBo

  • Color:

    White

  • MOQ:

    1
Inquiry now
  • Products Details

Product Name

800-2700MHzHigh Gain Omni Celling Antenna


Product Features

◆ With Wide Frequency Band 800-2700MHz

◆ 2G/3G/4G/LTE Coverage

◆ Low VSWR

◆ High Gain with 2/5dBi

◆ Widely used for In-building Solutions


The Omni ceiling aerial looks like a smoke detector and can combine with any of our repeater kits.  Multiband Omni antenna can work with the signal splitter to provide coverage to more than one area with a single base unit repeater.


Technical &Mechanical Specifications

Model No.

                                                MNOA-800-2700-2/5-NF

Freq(MHz)

                                                  800-960/1710-2700

VSWR

                                                          ≤1.5

Gain(dBi)

                                                        2/5dBi

Horizontal Beanwidth-°

                                                         360

Vertical Beamwidth-°

                                                         70

Nominal Impedance

                                                     50 Ohm

Polarization

                                                     Vertical

Maximum power(W)

                                                        50

Connector

                                                   N female

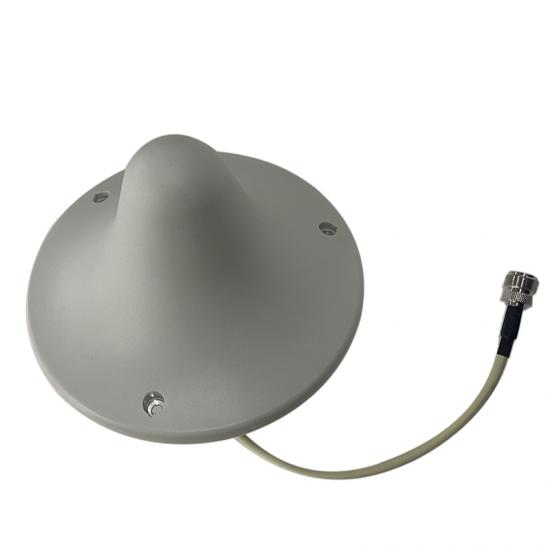

Products Pictures

800-2700MHz 2/5dBi Omni Ceiling Antenna

800-2700MHz 2/5dBi Omni Ceiling Antenna


 Omni Ceiling Antenna multiband indoor antenna:

  • Compatible with GSM900, GSM1800, 3G UMTS networks
  • For Indoor Omni-directional coverage
  • Easy to install
