Product Name
698-6000MHz Mimo Ceiling Mount Dome Antenna
Product Features
◆ with Wide Frequency Band 698-6000MHz
◆ 2G/3G/4G/LTE Coverage
◆ Low VSWR
◆ High Gain with 4-6dBi
◆ Widely used for In-building Solutions
Mimo Omni Ceiling Antennaoperates from 698 to 6000MHz with 4-6dBi Gain and N-Female Connector.It is widely used for In-building DAS.
Technical &Mechanical Specifications
|
Model No. |
MOA-760-46-NF-153 |
|||||
|
Frequency(MHz) |
698-806 |
806-960 |
1710-2170 |
2300-2700 |
3300-3800 |
4900-6000 |
|
Polarization |
H |
H |
H |
H |
H |
H |
|
Horizontal Beam Width |
360 |
360 |
360 |
360 |
360 |
360 |
|
Gain (dBi) |
4.8 |
5 |
6.3 |
4.5 |
4.6 |
6.3 |
|
VSWR |
≤1.5 |
≤1.5 |
≤1.5 |
≤1.5 |
≤1.5 |
≤1.8 |
|
Average Power(W) |
50 |
|||||
|
3rd PIM(dBc) |
≤-153dBc@2*43dBm |
|||||
|
Impedance (ohm) |
50 |
|||||
|

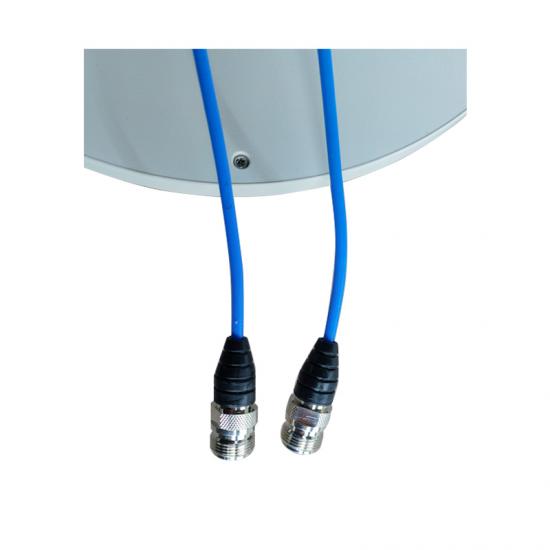

Connector |
N-Female |
|||||
|
Cable Color |
Blue |
|||||
|
Light Protection |
DC-Ground |
|||||
|
Working Temp(deg) |
-40~+55 |
|||||
|
Wind Loading Area(㎡) |
≤0.2 |
|||||
|
Rated Wind Velocity(m/s) |
36.9 |
|||||
|
Radome Material |
ABS (UV Stabilized) |
|||||
|
Dimensions(mm) |
Ø213*18.5 |
|||||
