Directional Coupler (2-9GHz, 5W, SMA-Female Connector)

Directional Coupler (2-9GHz, 5W, SMA-Female Connector)

10dB wide frequency band 2-9GHz directional coupler with 5W,SMA-Female Connector

  • Item NO.:

    MDC-10-2-9-SF

  • Product Orgin:

    China

  • Brand:

    Maniron

  • Shipping Port:

    Shanghai/Shenzhen/Guangzhou/Ningbo

  • Color:

    Black
Inquiry now
  • Products Details

Product Name

10BdB Directional  Coupler (2-9GHz, 5W, SMA-Female Connector)


Product Features

◆ Wide Frequency Band

◆ 2G/3G/4G/LTE/5G Coverage

◆ Low Port VSWR

◆ Low Insertion Loss

◆ Widely used for In-building Solutions

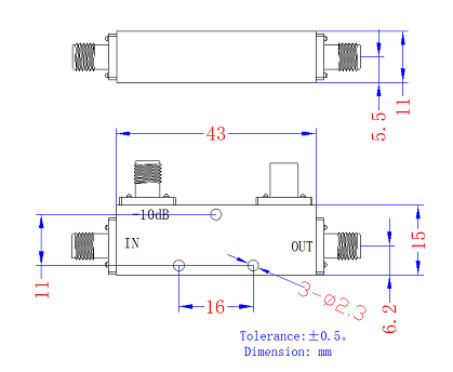

Technical & Mechanical Specifications

Model No.

MDC-10-2-9-SF

Frequency Range

2-9GHz

Insertion Loss

≤1.0dB

Coupling

10±1dB

Directivity

≥18dB

VSWR

≤1.3 : 1

Impedance

50 Ohm

Port Connectors

SMA-Female

Power Handling

5 Watt

Storage Temperature

-40℃to+70℃

Finish

Black

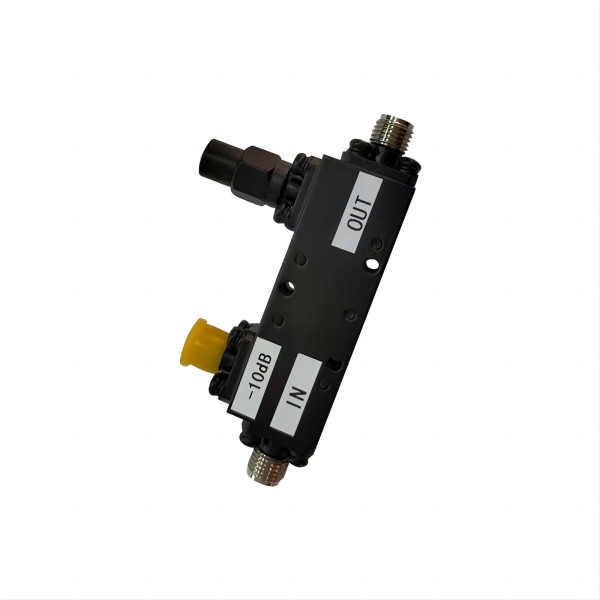

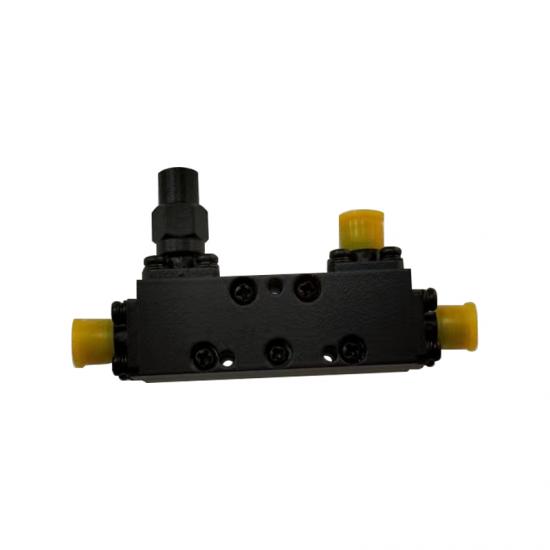

Product Photos
