Product Name
698~960MHz/1710~2690MHz×2/1710~2690MHz×2 65°/65°/65° 15.7/16.2/15.7dBi 0°~10°/0°~10°/0°~10° Integrated RCU (Remote Control Unit) Antenna
Product Features
◆ 2×8 Pin circle connector according to IEC 60130- 9 and AISG
◆ Daisy chain in:Male,Daisy chain out:Female
◆ Pin1:12V;Pin3:RS485B;Pin5:RS485A;Pin6:10-30V
◆ Pin7:GND;Pin2&Pin4&Pin8:N/C
Technical & Mechanical Specifications
Frequency Range(MHz)
1710~1920
1920~2200
2490~2690
Polarization
±45°
Gain at mid tilt (dBi)
15.1
15.4
15.8

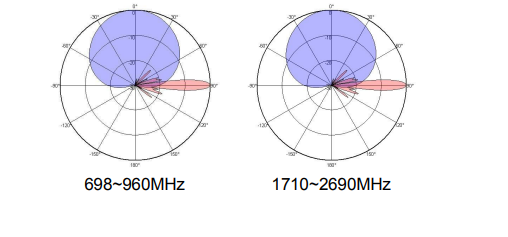

Horizontal 3dB beamwidth (°)
69±8
65±4
66±5
Vertical 3dB beamwidth (°)
9.5±0.4
8.0±0.5
6.3±0.5
Front-to-back ratio (dB)Total power,±30°
>24
>24
>24
Cross-polar ratio (dB)at Boresight
>18
>18
>18
Electrical downtilt (°)
0~10
Sidelobe suppression (dB) (First sidelobe above main beam)
>16
>16
>15
VSWR
<1.5
Isolation: intra-system (dB)
≥25
Isolation: inter-system (dB)
≥30
Intermodulation IM3 (2×43dBm carrier)
≤-153 dBc
Impedance (Ω)
50
Max. power per input (W) @50°C
200
RET Model
TRCU-TQ10P2V01
RET Protocal
AISG 2.0/3GPP
Lightning protection
Dc Ground
Connector
10×4.3-10 Female
Application
