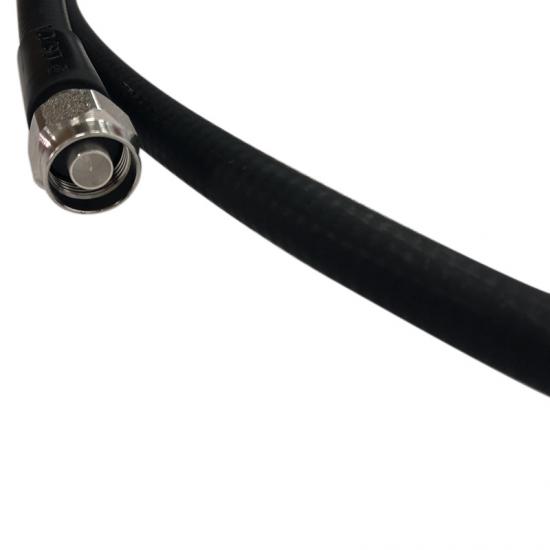

Jumper Cable 3M ½SF N(m)-N(m)

1/2"Superflex jumper cable with N Male to N male Connector
  • Item NO.:

    MJC-NMNM-3-12
  • Product Orgin:

    China
  • Brand:

    Maniron
  • Shipping Port:

    Shanghai/Shenzhen/Guangzhou/Ningbo
  • Color:

    Black
  • Products Details

Product Name

3M N(m)-N (m) 1/2"Superflex jumper cable


Technical &Mechanical Specifications

Interface

IEC60169-16

 Electrical

Characteristic Impedance

50Ω

Frequency Range

DC-6GHz

VSWR

≤1.2

Insulation resistance

≥10000MΩ

Working Voltage

2700V max

Withstand Voltage

4000V rms

Mechanical



Durability

Mating cycles ≥500

Material and plating

Part

Material

plating

Body

Brass

Tri-Metal or Nickel Plated

Center conductor

Phosphor Bronze

 Ag or gold Plated

Insulator

PTFE



Other

Brass

Tri-Metal or Nickel Plated

Environmental

Temperature Range

-55°C~+155°C
