Product Name :
17.0-17.5dBi integrated RCU panel antenna
Product Features:
◆ Extended spectrum compliance for703-2170MHz
◆ Uses the new 4.3-10 connector, which is 40% smaller than traditional 7/16 DIN connector
◆ LowPassive Inter-modulation
Technical Specifications:
Frequency range (MHz)
R1/R2-(703-803/905-960)×2
R3-824-884
B1/B3-1710-1880
B2/B4-1920-2170
703-803
905-960
824-884
1710-1880
1920-2170
Polarization
±45°
Gain over all tilts (dBi)
16.6±1
17.0±1
16.8±1
17.5±1
17.5±1
Horizontal 3dB beamwidth(°)
69±7
65±6
67±6
65±6
63±6
Vertical 3dB beamwidth()
9.1±0.5
7.5±0.5
8.3±0.5
7.4±0.6
6.4±0.5
Front to back ratio (dB) Total power,±30°
≥26
≥26
≥26
≥26
≥26
Cross polarratio (dB) (at Boresight)
≥15
≥15
≥15
≥15
≥15
Electrical downtilt ()
2~10
2~10
2~12
2~12
Sidelobe suppression(dB)
(First sidelobe above main beam)
≥15
≥15
≥15
≥15
≥15
VSWR
<1.5
Isolation:intra-system (dB)
≥25
Isolation:inter-system (dB)
≥80(703~803/824~884) ≥80(703~803/905~960) ≥90(824~884/905~960)
≥30
Intermodulation IM3 (2×43dBm carrier)
≤-150 dBc
Impedance (Q)
50
Max.power per input (W)@50℃
350
Lightning protectior
Dc Ground
Mechanical Specifications

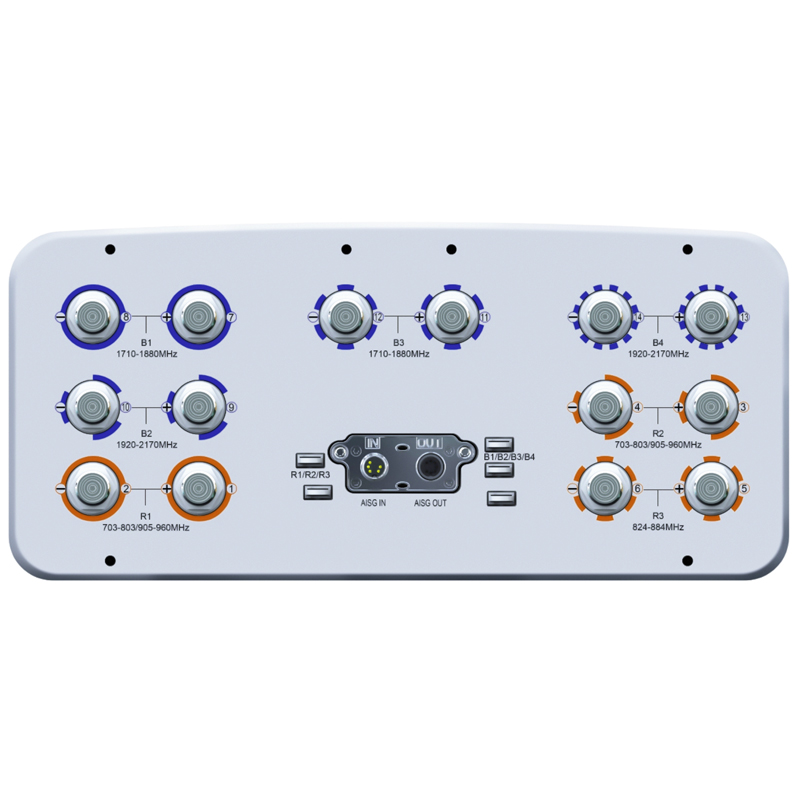

Connector
14×4.3-10-Female
Connector position
Bottom
Height ×width×depth (mm)
2680×446×205
Packing size (mm)
2835×510×255
Antenna weight (kg)
44.5
Installation kit weight(kg)
8.7
Packing weight (kg)
54
Wind load (N,at 150km/h) Frontal/Lateral/Rearside
1433/447/1602
Max.wind velocity (km/h)
216
Radome material
Fiberglass
Radome color
Gray
Mechanical tilt(°)
0~8
Operating temperature(℃)
-50~65
Mounting hardware(mm)
φ50~φ115
Integrated RET Properties
RET type
Integrated(Replaceable)
RETprotocol
AISG 2.0/3GPP
Powersupply(V)
10-30 DC
Power consumption(W)
≤0.6 (Idle,12V),≤6(In motion,12V)
Adjustment time (Full Range)
<4Mins
Adjustment cycles
>50,000
Temperature range(℃)
-40~65
Lightning protection
3KA(8/20μs)@Pin5 &Pin3;
5KA(8/20μs)@Pin1/Pin6 &Pin7
Connectors
2×8 Pin circle connector according to IEC 60130-
9 and AISG.
Daisy chainin:Male,Daisy chain out:Female Pin1:12V;Pin3:RS485B;Pin5:RS485A;Pin6:10-30V; Pin7:GND;Pin2&Pin4&Pin8:N/C
