Customization service 897.2-960MHz Bandpass Filter

897.2-960MHz RF BandPass Filter is double unit with good performance,Low intermodulation and high quality.Easy to install.

Item NO.:
MNF-897.2/960MHz-431
Lead Time:
Depending on exact quantity
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/NingBo
Payment:
FOB,CIF
Color:
Grey
MOQ:
5

Inquiry now

Products Details

Product Name:

897.2-960MHz RF BandPass Filter Double Unit

RF Bandpass Filter can improve the input selectivity of receivers and amplifiers &increase the isolation of transmitters, whose re-spective antennas are mounted close together
200W RF Filters are Narrow pass band range with low insertion loss, high stop band attenuation.

Product Features:

◆ Wide Frequency Band

◆ 2G/3G/4G/LTE Coverage

◆ High reliability

◆ Compact,Low weight

◆ Widely used for In-building Solutions

Technical &Mechanical Specifications:

Model No.	MNF-897.2/960MHz-4310F-153-D
Frequency Range(MHz)	UL: 897.2-915MHz DL: 942.2-960MHz
Insertion Loss(dB)	UL:≤2.0d(typical≤0.5dB) DL:≤0.4dB
Out of Band Rejection(dB)	≧35dB(869-882.2MHz) ≧45dB(882.2-887.2MHz) ≧55dB(887.2-892.2MHz) ≧35dB(892.2-894MHz)
Impedance(ohms)	50
Return Loss	≥20dB
DC Path	40V.3A,3GPP(AISG)transparent
Intermodulation (3rd order)	-153dBm @ 2 x 43dBc carrier
Power(W)	200W Avg
Connector type	4310F or DIN F
IP grade	IP67

Product Photos

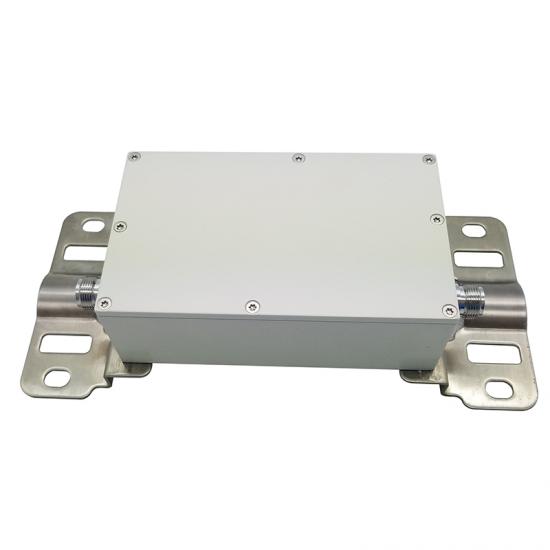

897.2-960MHz RF BandPass Filter

Our Service,

1. Professional skills support for 897.2-960MHz RF BandPass Filter
2. OEM/ODM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.

NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose
