3m and 6m 1/2＂Superflex jumper cable with 4.3/10 Male Straight connector at both sides

1/2＂Superflex cable of 4.3/10 Male Straight to 4.3/10 Male Straight ,Low PIM

Item NO.:
MJC-1-2SF-4M-4M-3M
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou
Color:
Black/Customized
MOQ:
10

Inquiry now

Products Details

Product Name

1/2＂Superflex cable of 4.3/10 Male Straight to 4.3/10 Male Straight ,LOW PIM

Technical &Mechanical Specifications

LInterface
According to			IEC 61169-54
Electrical
Characteristic Impedance			50 ohm
Frequency Range			DC-6GHz
VSWR			(DC-3GHz)≤1.10 (3-6GHz)≤1.20
PIM ( @2-tonex20w)			≤-163dBc
Dielectric Withstanding Voltage			≥2500V RMS,50Hz,at sea level
Dielectric Resistance			≥5000MΩ
Insert Loss(6Ghz)			1.4dB
Mechanical
Durability			Mating cycles≥100 cycles
Material and plating
	Material			plating
Body	Brass			Tri-Alloy
Insulator	PTFE			-
Center conductor Other	Brass Brass			Ag Ni
Environmental
Temperature Range		-40℃～+85℃
Watertightness		IP67
Rosh-compliance		Full ROHS compliance
Salt-fog test		96h

Leave Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : 3m and 6m 1/2＂Superflex jumper cable with 4.3/10 Male Straight connector at both sides
Im interested in your "3m and 6m 1/2＂Superflex jumper cable with 4.3/10 Male Straight connector at both sides", please inform me more detailed product information and price. Thankyou!

Tags :

Categories

New Products

Related Products

LMR240 0.5M Jumper Cable with N male connectors

LMR240NMNM-0.5 Jumper cable uses 0.5meter of LMR-240 cable. This jumper cable is fitted with N Male connectors on both sides. The crimp connectors include heat shrink.

LMR400 30Feet Jumper Cable N male SMA male connectors

This Jumper Cable uses 30feet(9.14meters)of LMR-240 cable. It is fitted with N Male straight connector and SMA male straight connector on both sides. The crimp connectors include heat shrink.

RG402 2M Jumper Cable With 4310 Male Connectors

MNJC-RG402 4310JJ-2 Jumper cable uses 2meters of RG402 white pvc cable. This jumper cable is fitted with 4310 Male connectors on both sides. The crimp connectors include heat shrink.

Jumper Cable 3M ½SF N(m)-N(m)

1/2＂Superflex jumper cable with N Male to N male Connector

LMR240 0.6M Jumper Cable with N male and QMA male connectors

LMR240NMQM-0.6 Jumper cable uses 0.6meter of LMR-240 cable. This jumper cable is fitted with N Male and QMA male connectors on both sides. The crimp connectors include heat shrink.

5m 1/2＂superflex feeder cable with 4.3/10 Male Straight connector to 7/16 DIN male right angled

1/2＂Superflex cable of 4.3/10 Male Straight to 7/16 DIN male right angled ,Low PIM

DC-3GHz 200W dummy Load with 7/16 DIN male Connector

DC-3GHz 200W RF dummy Load,which is widely used for In-building Solutions

50W 350-2700MHz RF 2way Wilkinson Power Splitter Divider

Microstrip/Wilkinson power dividers are widely used RF devices with various applications in communication and signal processing.

Maniron 600-6000MHz SISO Indoor Omni Dome Antenna

Omni Dome Antenna is used in the wide wave band. With wide frequency, high gain and low PIM, it can be widely used for DAS.

High Gain Antenna 698-6000MHz Omni Ceiling Antenna with 4.3/10

The omni ceiling antenna covers frequency 698-6000MHz,which is in low PIM -153dBc with N/4.3-10/DIN-F connector

350-960MHz UHF SISO Omni Ceiling Antenna

Omni ceiling antenna is designed to be mounted in a suspended ceiling and provides better indoor coverage than a standard whip antenna.

UHF Frequency Band 380-400 410-430MHz Diplexer

The frequency of Diplexer covers from 380-400MHz 410-430MHz,which is in high rejection 50dB

Original manufacturer RF DC-3GHz 200W 50dB Attenuator With N-M to N-F

DC-3GHz 200W RF Attenuator has good performance like Low VSWR,Low Attenuation Accuracy,it widely used for In-building Solutions.

100W RF Termination Load DC-3Ghz Load with N 4.3-10 DIN Connector

DC-3GHz 100W Load is widely used for IBS DAS

824-894 1710-1755/2110-2155 1850-1990 2500-2690 3300-3800MHz rf combiner

Maniron 800-3800MHz Low PIM Outdoor Penta-band Combiner

This Outdoor Penta-band Combiner covers frequency 824-894MHz 1710-1755/2110-2115MHz/1850-1990MHz 2500-2690MHz 3300-3800MHz with N/4.3-10/DIN-Female Connector,which is in Low PIM -153dBc

698-2700MHz 8Way Wilkinson Power Divider NF Connector

Maniron 8 way power divider, power combiners are available with Type N, SMA, TNC, BNC, and QMA connector options. All models are optimized for broadband operation covering the frequency ranges from 350 to 1000 MHz, 698 to 2700 MHz, 1 to 2 GHz, and 2.4 to 6 GHz with good performance. These Wilkinson hybrid, 8 way, power divider, power combiners are reciprocal units that divide and combine signals with equal facility.

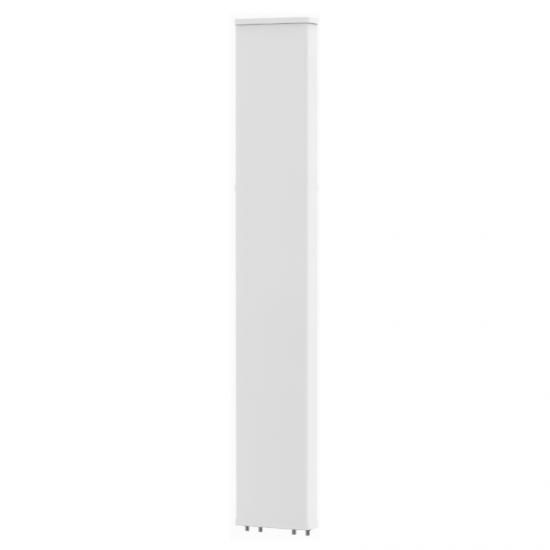

6 Ports 698~862MHz/880~960MHz/1710~2690MHz 65° 16/17/18dBi 2°~12° Integrated and replaceable RCU Antenna
