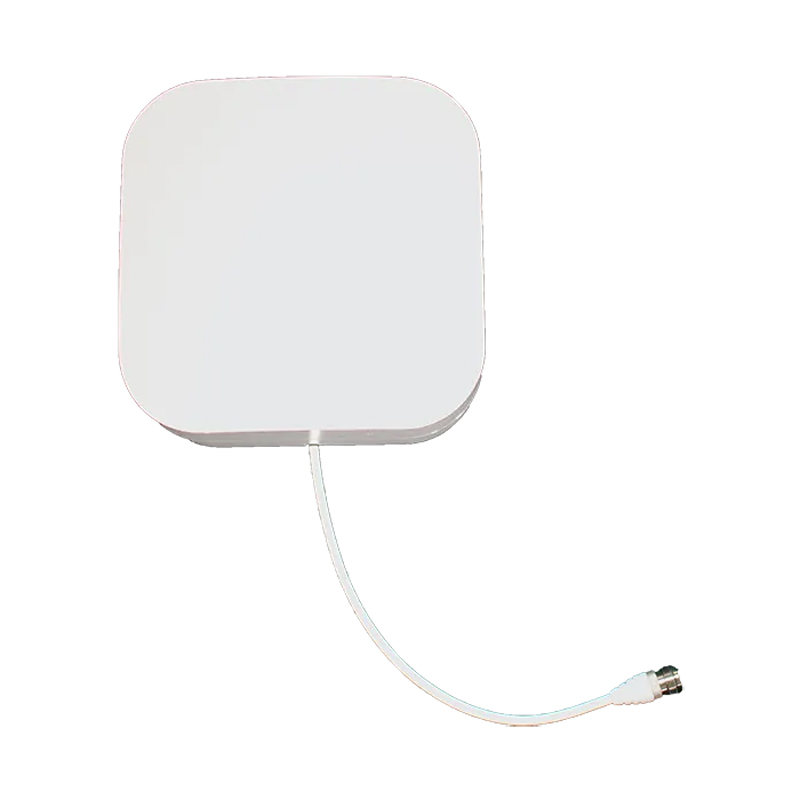

Maniron 600-4000MHz SISO Indoor Multiple Installation Panel Antennas 5.5/6.5/8.0/7.0dBi

Panel Antenna is used in the wide wave band. With wide frequency, high gain and low PIM, it can be widely used for DAS.

Item NO.:
MFA-600-4000-7-65A-L
Lead Time:
7-10 days
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen
Color:
White
MOQ:
1

Inquiry now

Products Details

Product Name

Maniron 600-4000MHz SISO Indoor Multiple Installation Panel Antennas 5.5/6.5/8.0/7.0dBi

Product Features

◆ Wide Frequency Band 600-4000MHz

◆ Low VSWR

◆ High Gain

◆ Widely used for DAS

Technical &Mechanical Specifications

Electrical Specifications
Frequency Range(MHz)	600-698	617-698	698-960	1710-2700	3300-4000
Gain(dBi)	5.5	5.7	6.5	8	7
VSWR	≤2.0	≤2.0	≤2.0	≤1.8	≤2.0
Polarization	Vertical
PIM, 3rd Order, 2x20W(dBc)	≤-140
Front to Back Ratio(dB)	≥9	≥9	≥9	≥15	≥11
Horizontal Beam width	85°	80°	76°	65°	50°
Vertical Beam width	74°	72°	68°	60°	45°
Input Impedance	50 Ω
Max. Input Power	50 W
Mechanical Specifications
Connector	N \| 4.3-10 Female
Dimensions(mm)	173x173x70
Weight(kg)	0.5
Radome Material	ABS
Operating Temperature	-40°C to +65 °C
Mounting	Ceiling Mount \| Wall Mount

Horizontal

SISO Multiple Installation Panel Antennas

Multiple Installation Directional Antennas

Vertical

700-960MHz

1710-2690MHz

3300-3950MHz

Application
