 / 694-2690MHz 65°18Bi 2°~12° 12-Pol Integrated RCU RET Sector BTS Base Station Antenna

Base station Antenna
Base station Antenna Base station Antenna Base station Antenna

694-2690MHz 65°18Bi 2°~12° 12-Pol Integrated RCU RET Sector BTS Base Station Antenna

Integrated RCU (Remote Control Unit) Antenna has excellent PIM performance and high gain with  12x4.3/10 Female connector,coverage GSM/CDMA/PCS/3G/4G/5G

  • Item NO.:

    MBA-727-4F-12-153-17

  • Product Orgin:

    China

  • Brand:

    Maniron

  • Shipping Port:

    Shanghai/Shenzhen/Guangzhou/Ningbo

  • Color:

    White
Inquiry now
  • Products Details

 Product Name

12 Pol 1710-2690MHz×2  65°18dBi 2°~12° Integrated and replaceable RCU (Remote Control Unit) Antenna




Product Features

◆ Extended spectrum compliance for 1710-2690MHZ

◆ Includes 2 cross polarization arrays(4ports) for low band(698-960MHz) and 4 cross polarization arrays(8ports)  for high band(1710-2690MHz)

◆ Uses the new 4.3-10 connector, which is 40% smaller than traditional 7/16 DIN connector

◆ Single integrated and field replaceable RCU provide up to 10 RETs for independent electrical tilt control for each array, Compliant with AISG/3GPP



◆ for independent electrical tilt control for each array, Compliant with AISG/3GPP



Technical & Mechanical Specifications

Electrical specifications
Frequency Range (MHz)
694~803
790~862
824~894
880~960
1710~1990
1920~2200
2200~2490
2490~2690
Polarization
±45°
Gain at mid tilt (dBi)
14.4
14.8
15.2
15.3
16.8
17.2
17.4
17.8
Horizontal 3dB beamwidth (°)
71±6
68±5
66±5
64±6
68±6
62±5
60±5
58±6
Vertical 3dB beamwidth (°)
11.8±0.9
11.1±0.6
10.7±0.5
10.2±0.6
7.6±0.6
7.0±0.5
6.1±0.5
5.5±0.4
Front to back ratio (dB) Total power, ±30°
>20
>21
>22
>23
>25
>26
>25
>26
Cross polar ratio (dB) (at Boresight)
>20
>19
>19
>20
>20
>19
>19
>20
Sidelobe suppression (dB) (First sidelobe above main beam)
>15
>16
>16
>16
>15
>16
>16
>15
Electrical downtilt (°)
2~12
2~12
VSWR
＜1.5
Isolation: intra-system (dB)
≥25
Isolation: inter-system (dB)
R1//R2≥25
R1,R2//Others≥26
Intermodulation IM3 (2×43dBm carrier)
≤-153 dBc
Impedance (Ω)
50
Max. power per input (W) @50°C
400
200
Lightning protection
Dc Ground
Mechanical specifications
Connector
12×4.3-10 Female
Connector position
Bottom
Wind load (N,at 150km/h) Frontal/Lateral/Rearside
740/240/990
Max. wind velocity (km/h)
216
Radome material
GFRPP
Operating temperature (℃)
-50~65
Mounting hardware (mm)
Ф50~Ф115
Integrated RET properties
Power supply(V)
10-30 DC
Lightning protection
3KA(8/20μs) @ Pin5 & Pin3;
5KA(8/20μs) @ Pin1 / Pin6 & Pin7
Connectors
2×8 Pin circle connector according to IEC 60130- 9 and AISG.
Daisy chain in:Male,Daisy chain out:Female
Pin1:12V; Pin3:RS485B; Pin5:RS485A; Pin6:10-30V;
Pin7:GND; Pin2&Pin4&Pin8:N/C




Application





Leave Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
698-2700MHz Panel Antenna
698-2700MHz SISO Directional Wall Mount Antenna Low PIM -150dBc -160dBc
The directional antenna is used as a system to determine the angular direction of incoming radio signals.
Log Periodic Antenna High Gain
698-2700MHz High Gain 10dBi Log Periodic Antenna
Log-Periodic Antenna is mainly used in the ultra-short wave band
698-3800MHz Omni Directional Antenna
698-3800MHz Broadband Indoor Ceiling Antenna with N-Female
Omni Directional Antenna ranges from 698-3800MHz which are in high gain for indoor buliding systems.
MIMO Indoor Omni Directional Antenna
800-2700MHz MIMO Omni Directional Antenna 3-5dBi Indoor RF Antenna
800-2700MHz MIMO Omni Directional Antenna has 2 connectors which are used indoor system
panel antenna high gain
790-870MHz High Gain 9dBi RF Mimo Panel Antenna
Panel Antenna is widely used indoor and esay for installing
panel directional antenna 7dBi 698-2700MHz
698-2700MHz Panel directional Antenna with 7dBi N-F Connector
Panel Directional Antenna is Widely used in IBS projects
698-3800MHz Indoor Panel Directional Antenna
High Gain 698-3800MHz Indoor Panel Directional Antenna 5-7dBi
Panel Directional Antenna is used for indoor signal receiption.
698-2700MHz Ceiling Omni Antenna
Maniron 698-2700MHz Ceiling Omni Antenna High Gain Indoor Antenna
The Ceiling Omni Antenna is widely used indoor,which is small and easy for installing.
698-2700MHz Omni Directional Antenna
Low PIM -150dBc -160dBc 698-2700MHz Omni Directional Ceiling Antenna High Gain
The indoor ceiling omni-directional antenna is usually installed on the ceiling to provide omni-directional coverage indoors.
Log-Periodic Antenna 698-2700MHz
Low PIM 698-960/1710-2700MHz 11dBi Log-Periodic Antenna -150dBc DAS Antenna
Log-Periodic Antenna is mainly used in the ultra-short wave band, and can also be used as the short wave communication antenna, medium wave and short wave broadcasting transmitting antenna
VHF UHF Antenna
VHF UHF Antenna 470-512MHz RF Antenna for Wireless Communication
UHF antenna is a device for recieving and sending RFID signals. It is widely used in occasions that require long distance indentifying and high motion speed tracking.
698-2700MHz Omni Ceiling Antenna
Maniron 698-2700MHz Omni Ceiling Antenna -150dBc Low PIM
It's one kind of ceiling antenna which is mainly used for indoor signal coverage.
1800-2100MHz yagi antenna
9 Elements1800-2100MHz UMTS2100 Antenna 13dBi
It has good directionality and higher gain than the dipole antenna,which is useful for long-distance communication.
GSM900 Yagi Antenna
806-960MHz 13dBi GSM900 9 Elements Yagi Antenna for Outdoor
It has good directionality and higher gain than the dipole antenna.
Low PIM -153dBc SISO Omni Antenna for communications
RF 698-3800MHz High Gain Slim Omni Ceiling Antenna
698-3800MHz Low PIM -153dBc Slim Indoor Omni Antenna
698-2700MHz Log Periodic Antennas
High Gain 698-2700MHz SISO Log Periodic Antennas with N-female
698-2700MHz SISO Log Periodic Antennas is high Gain used in DAS
GSM Sector Antenna
GSM Multi-Band Directional Sector Antenna
GSM Multi-Band Directional Sector Antenna is high Gain used in DAS
2400-2500MHz panel sector antenna
multiband outdoor panel sector LTE 4G antenna for 2G 3g 4g
Panel sector antenna is widely used in BTS with high gain.
800-2700MHz 2/5dBi Omni Ceiling Antenna
800-2700MHz 2/5dBi Omni Ceiling Antenna
Omni ceiling antenna is designed to be mounted in a suspended ceiling and provides better indoor coverage than a standard whip antenna.Omni ceiling antenna is compatible with GSM900, GSM1800 and 3G UMTS 2100 networks. This indoor ceiling aerial is suitable for almost all of the repeater kits.
ceiling antenna
698-2700MHz 2/5dBi Omni Ceiling Antenna
Omni ceiling antenna is designed to be mounted in a suspended ceiling and provides better indoor coverage than a standard whip antenna.
Omni Ceiling Antenna
350-960MHz UHF SISO Omni Ceiling Antenna
Omni ceiling antenna is designed to be mounted in a suspended ceiling and provides better indoor coverage than a standard whip antenna.
Low PIM Slim Indoor Omni Antenna
380-3800MHz Low PIM Slim Indoor Omni Antenna
380-3800MHz Low PIM Slim Indoor Omni Antenna
RF Red VHF UHF Antenna
470-512MHz RF Red VHF UHF Antenna
470-512MHz RF Antenna is used for VHF,UHF,Public Safety Solution System.The color is as same as 138-960MHz Components,like power splitter,directional coupler,hybrid coupler,combiner
antenna coupler
Antenna coupler
An antenna coupler is a device which makes it possible for one or two antennas to do the electrical work of many, as opposed to using a separate antenna for each individual wavelength.
omni ceiling antenna
RF wifi 350-2700MHz ultra thin Omni Ceiling Antenna High Gain
350-2700MHz Low PIM -140dBc Ultra thin Omni Antenna
RF Antenna high gain indoor omni antenna
Maniron 698-2700MHz Low PIM -153dBc Omni Ceiling Antenna
Omni Directional Antenna covers frequency 698-2700MHz ,which is in low PIM -153dBc for indoor system
Low PIM -153dBc RF Antenna
Maniron 698-2700MHz Slim RF Omni Ceiling Antenna
The omni ceiling antenna covers frequency 698-2700MHz,which is slim and in low PIM -153dBc.
380-3800MHz omni antenna
ultra thin omni ceiling antenna 380-3800MHz for IBS
The omni ceiling antenna covers frequency 380-3800MHz,which is slim and in low PIM -153dBc.
Low PIM -153dBc Omni Ceiling Antenna
High Gain Antenna 698-4000MHz Omni Ceiling Antenna
The omni ceiling antenna covers frequency 698-4000MHz,which is in low PIM -153dBc with N/4.3-10/DIN-F connector
SISO Panel Antenna for Outdoor
Maniron 698-3800MHz Low PIM -153dBc RF Panel Antenna
This RF Panel antenna covers frequency 698-3800MHz,which is in low PIM -153dBc with N/4.3-10/DIN-F connector and it's used for outdoor DAS
SISO omni antenna in High Gain
617-3800MHz Slim RF Omni Ceiling Antenna with -153dBc
The slim omni ceiling antenna covers frequency 617-3800MHz,which is in low PIM -153dBc with N/4.3-10/DIN-F connector.It's easy for installation.
698-6000MHz Omni Ceiling Antenna
High Gain Antenna 698-6000MHz Omni Ceiling Antenna with 4.3/10
The omni ceiling antenna covers frequency 698-6000MHz,which is in low PIM -153dBc with N/4.3-10/DIN-F connector
698-3800MHz Omni Ceiling Antenna
High Gain Antenna 698-3800MHz Omni Ceiling Antenna for 5G Low PIM
The omni ceiling antenna covers frequency 698-3800MHz,which is in low PIM -153dBc with N/4.3-10/DIN-F connector
698-4000MHz outdoor panel antenna
698-4000MHz outdoor panel antenna with low PIM 4.3/10 connector
This RF Panel antenna covers frequency 698-4000MHz,which is in low PIM -153dBc with N/4.3-10/DIN-F connector and it's used for outdoor DAS
860-870MHz 5dBi Omni Directional Antenna
860-870MHz 5dBi Omni Directional Antenna with N-Female
860-870MHz  Omni Directional Antenna has high gain which are in high gain for indoor buliding systems.
Fiberglass Omni Antenna
Fiberglass Omni Antenna 380-470MHz
380～470MHz 3dBi Fiberglass Omni Antennas for UHF Band Communications System
690-3800MHz SISO Omni Ceiling Antenna
690-3800MHz, 1.5/2/2/5dBi, 50W SISO Omni Ceiling Antenna with N-Female connector PIM 140dBc
The Ceiling Omni Antenna is widely used for In-building DAS,which is small and easy for installing.
700-2700MHz Paper MIMO Omni Antenna
beautiful 700-2700MHz Paper MIMO Omni Antenna with low PIM
The omni ceiling antenna covers frequency 700-2700MHz,which is in low PIM -153dBc with N/4.3-10/DIN-F connector
panel directional antenna 1710-2700MHz
1710-2700MHz MIMO 12dBi Outdoor Panel Directional Antenna
1710-2700MHz MIMO 12dBi Outdoor Panel Directional Antenna
698-3800MHz Log-periodic Antenna
SISO 698-3800MHz Log-periodic Antenna with 4.3/10 type for 5G DAS
698-3800MHz Log-periodic Antenna is widely used for In-building Solutions with high Gain,10/12dBi.
fiberglass omni antenna
698-2700MHz 68CM 50W Fiberglass Omni Antenna
This Fiberglass Omni Antenna with N Female connector covers 698-960/1710-2700MHz Fiberglass antennas deployed in a comprehensive range of networks such as Public Safety, Mission Critical Communication, LTE and IoT networks
2 way cavity power splitter
Maniron 380-3800MHz 2 Way Round Cavity Power Splitter with Low PIM -160dBc
The cavity power splitter with high power.It covers frequency from 380 to 3800MHz with Low PIM -160dBc
Omni-directional Fibreglass Antenna
Maniron 698-3800MHz 3.5dBi Omni-directional Fibreglass Antenna with 4.3-10 female Connector
It's Omni-directional fibreglass antenna,coveres frequency from 698-3800MHz.It's easy for install.
4 way cavity power splitter
380-3800MHz 4 Way Round Cavity Power Splitter with Low PIM -160dBc
4 Way cavity power splitter with high power.It covers frequency from 380 to 3800MHz with Low PIM -160dBc
698-2700MHz Desktop Antenna
wideband 698-2700MHz Desktop Antenna 4G Vertical Polarization
The Desktop Antenna covers frequency 698-2700MHz,which is in high gain with SMA connector
698-2700MHz Ultra omni antenna
698-2700MHz Ultra omni antenna rectangle with high gain
Ultra omni antenna covers frequency 698-2700MHz,which is beautiful shape with N-F connector
dual band panel antenna
dual band single-polarization 402-514/806-866MHz panel antenna
Panel antenna covers frequency 402-514/806-866MHz,which is dual band with N-F connector.
Ceiling Mount Dome Antenna
698-2700MHz MIMO Ceiling Mount Dome Antenna with low PIM
MIMO Ceiling Mount Dome Antenna covers frequency 698-2700MHz ,which is in low PIM -153dBc for indoor system
5G panel antenna
Indoor Wide band 5G Panel Antenna coverage 380MHz - 3800MHz low PIM
Indoor Wide band Panel Antenna , coverage 380MHz - 3800MHz ,  Low PIM ≤-140@2 x 20W

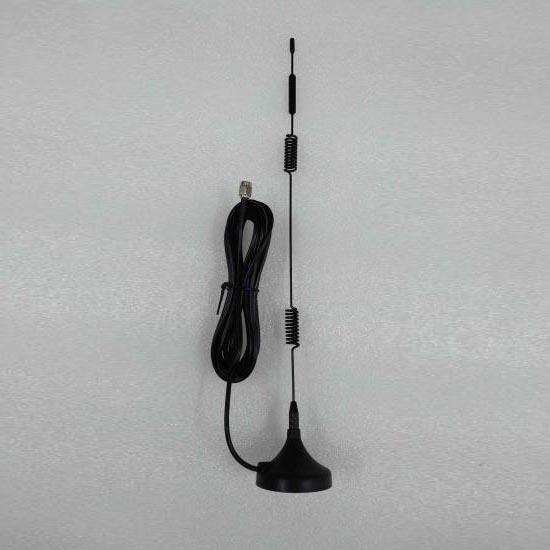

Magnetic Antenna
6dBi Magnetic Antenna 700-3600MHz for 5G , SMA
5G Magnetic Antenna 700-3600MHz , SMA Male,  Gain 6dBi

Do you have any questions ?

Call Us : +86 551 65329702
Subscribe
Please read on, stay posted, subscribe, and we welcome you to tell us what you think.
contact us
  • 3rd Floor, Building C, Haike Industry and Trade, Second Phase of Private Science and Technology Park, Tangkou North Road, Economic and Technological Development Zone, 230601,Hefei city, Anhui Province,China
  • Tel/Whatsapp : +86 18656036732
  • Email : [email protected]
  • Skype : ahsetsail
Copyright © 2024 Hefei Maniron Electronic and Technology Co., Ltd..All Rights Reserved
IPv6 network supportedIPv6 network supported
Powered by dyyseo.com
Sitemap | XML | Privacy Policy
Send A Message
welcome to maniron
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Home

Products

about

Contact
