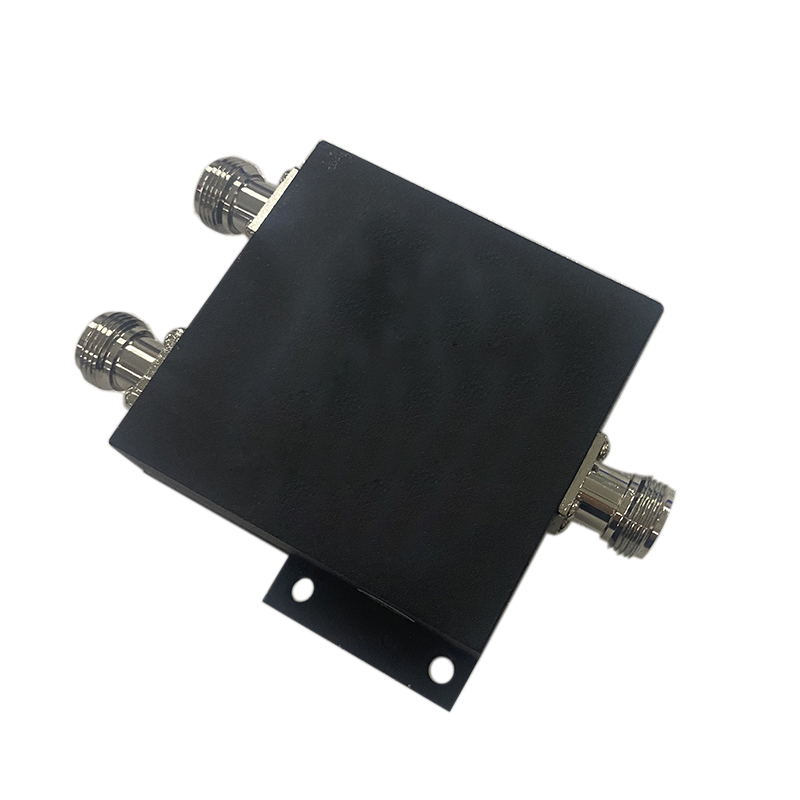

PIM-110dBc 2 Way Micro Power Splitter Divider with N-Female

800-2500MHz 50W 2 Way Power Splitter Divider

800-2500MHz 50W 2 Way Power Splitter Divider with N-Female Connector

Item NO.:
MPS-825-02-NF
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou
Color:
Black

Inquiry now

Products Details

Product Name

800-2500MHz 50W 2 Way Power Splitter Divider with N-Female Connector

Product Features

◆ Wide Frequency Band 800-2500MHz

◆ 2G/3G/4G/LTE Coverage

◆ Low Insertion Loss

◆ Low VSWR

◆ Widely used for In-building Solutions

Technical &Mechanical Specifications

Freq Range(MHz)	800-2500
Split Loss(dB)	3.0
Insertion Loss(dB)	≦0.4
Isolation(dB)	≧20 (800-2500MHz)
VSWR	≦1.30
PIM (dBc)	≦-110dBc@2*43dBm
Impedance(ohm)	50
Average Power(W)	50
Connector Type	N-female
Working Temp(deg)	-45~+65
Relative Humidity	5%-95%
Color	Black-plated
Weight(kg)	0.27

Leave Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : 800-2500MHz 50W 2 Way Power Splitter Divider
Im interested in your "800-2500MHz 50W 2 Way Power Splitter Divider", please inform me more detailed product information and price. Thankyou!
