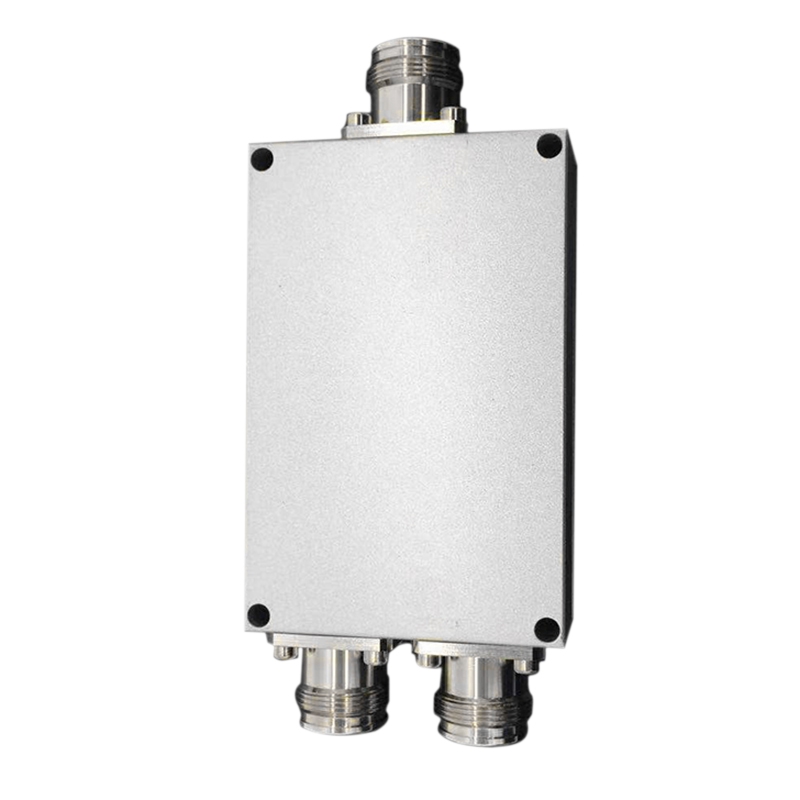

698-3800MHz Low PIM -153dBc RF Wilkinson Power Splitter Divider

Wilkinson/Microstrip Power Splitter has wide frequency band 698-3800MHz,which is widely used for 5G Market.It has low PIM Value,low insertion loss and VSWR

Item NO.:
MWPS-738-02-4F-153
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou
Color:
Black/Customized

Inquiry now

Products Details

Product Name

2/3/4Way 698-3800MHz Wilkinson Power Divider Splitter

These new designs with Low PIM -153dBc are used for 5G market.

Product Features

◆ Low VSWR

◆ Low Insertion Loss

◆ Indoor or outdoor Application

◆PIM-153dBc@2*43dBm

◆ Widely used for In-building Solutions and Outdoor application.

Technical &Mechanical Specifications

Freq(MHz)	698-3800
Input Port Number	1
Output Port Number	2
Split Loss(dB)	3.0
IL(dB)	≤1.0
Isolation(dB)	≥18
VSWR	≤1.45
3rd PIM (dBc)	≤-153dBc@2*43dBm(698-2700MHz)
Average Power(W)	50
Impedance	50Ohm
Connector	4.3-10-Female
Application	Indoor or Outdoor,IP65

OUR SERVICES
1. Professional skills support for RF Passive Components 698-3800MHz Low PIM 2Way Wilkinson/Microstrip Power Splitter/Divider with 4310-F
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.

NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose!
