RF Dummy Load
Home /

RF Dummy Load

 / 340-6000MHz 100W Low PIM Termination Load -161dBc

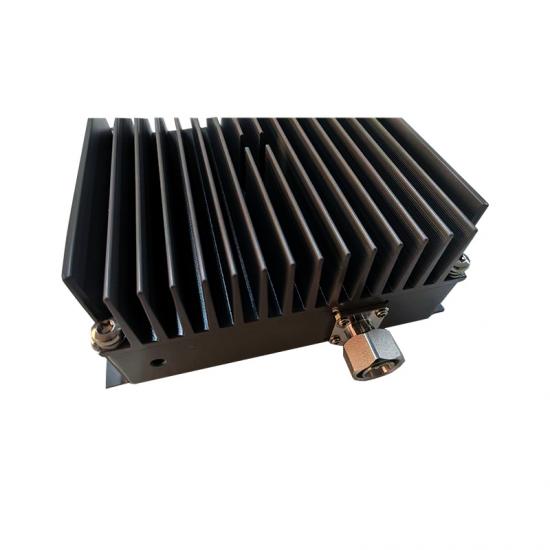

100W Low PIM Termination Load
100W Low PIM Termination Load 100W Low PIM Termination Load 100W Low PIM Termination Load

340-6000MHz 100W Low PIM Termination Load -161dBc

340-6000MHz, -161dBc, 4.3/10-female 100W Low PIM Termination Load  is Widely used for indoor and outdoor Solutions

  • Item NO.:

    MNDL-100-3460-4F-161

  • Product Orgin:

    China

  • Brand:

    Maniron

  • Shipping Port:

    Shanghai/Shenzhen/Guangzhou/Ningbo

  • Color:

    Silver Color
Inquiry now
  • Products Details

Product Name:


100W Low PIM Termination Load (340-6000MHz, -161dBc, 4.3/10-female,IP67)


Product Feature:

◆ Wide Frequency Band 340-6000MHz

◆ 2G/3G/4G/LTE Coverage

◆ Low VSWR

◆ Low Passive Intermodulation -161dBc

◆ Widely used for indoor and outdoor Solutions


Technical &Mechanical Specifications:

Frequency

 340-6000MHz

VSWR
<1.15（340-2700MHz) (1.10:1 typ)
<1.30（2700-6000MHz)(1.20:1 typ)

 PIM(dBc)

≤-161dBc@2*43dBm

Impedance

50Ω

Average Power(W)

100W

Connectors type

4.3-10 Female

Operating temperature range

-30°C to +65°C

Applications

IP66

Color

Black

Packing

1Pce in box

Product Drawing:

100W Low PIM load
