RF Dummy Load
Home /

RF Dummy Load

 / 5W DC-6GHz N male type Plug type RF termination Load without thread

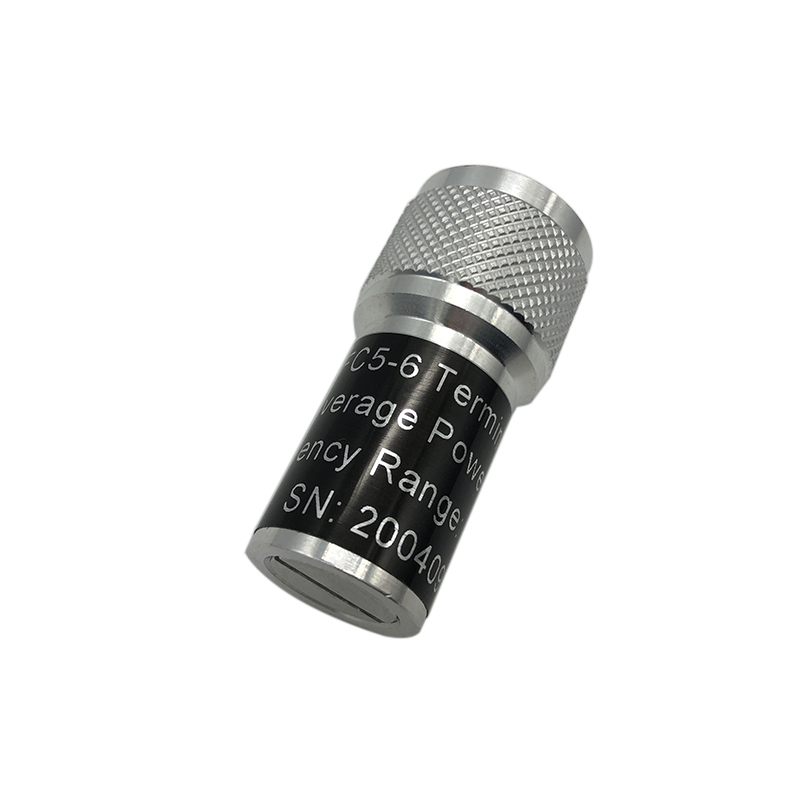

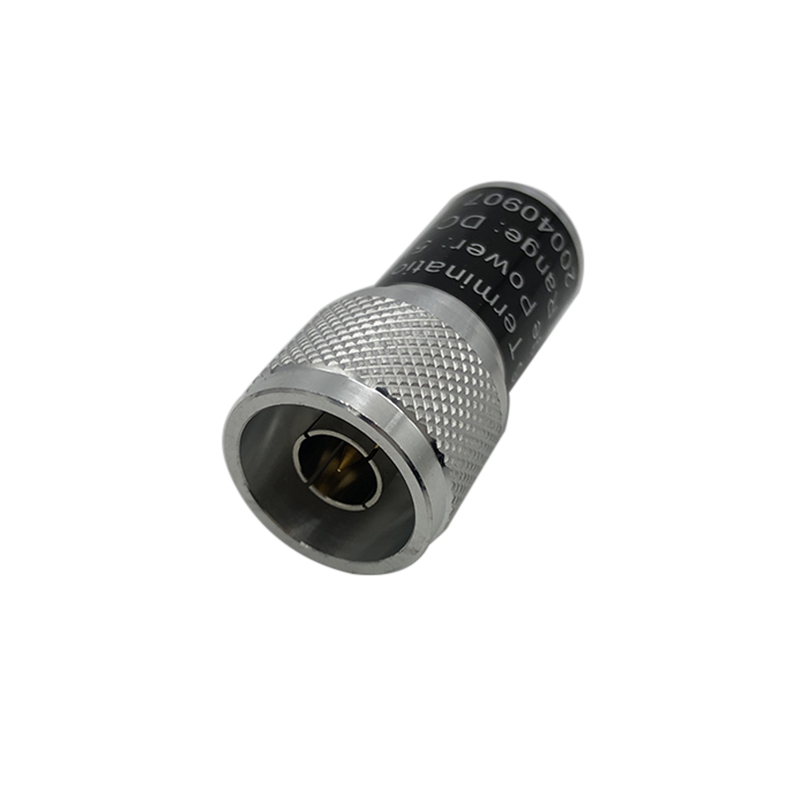

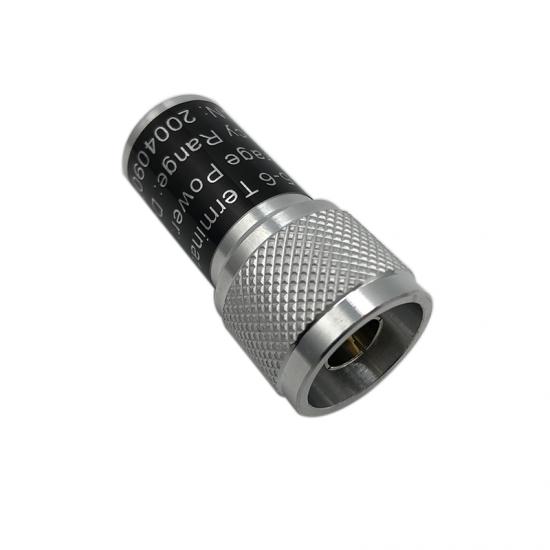

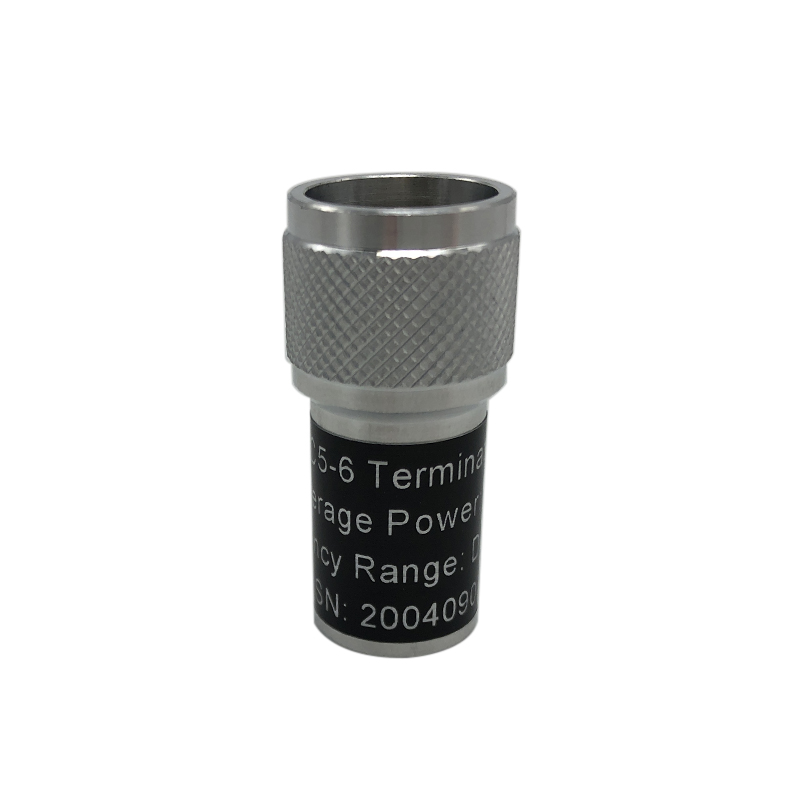

5W DC-6GHz N male RF termination
5W DC-6GHz N male RF termination 5W DC-6GHz N male RF termination 5W DC-6GHz N male RF termination

5W DC-6GHz N male type Plug type RF termination Load without thread

5W DC-6GHz N male type Plug type RF termination is mainly used for rapid and precise measurement of coaxial system

  • Item NO.:

    MNL-5-6-NM

  • Product Orgin:

    China

  • Brand:

    Maniron

  • Shipping Port:

    Shanghai/Shenzhen/Guangzhou
Inquiry now
  • Products Details

Product Name

5W 6G rf load is wide frequency band,Plug type RF termination is mainly used for rapid and precise measurement of coaxial system



Product Features

◆High frequency band DC-6GHz

◆Low VSWR

◆Easy to use


Technical &Mechanical Specifications

        Model No.

                                                MNL-5-6-NM

Connector  Housing

nickel plated brass

Cavity

Aluminum

Freq(GHz)

DC-6GHz

VSWR

≤1.15

Average Power(W)

5

Peak Power

0.5KW(5μs pulse width,1% load cycle)

Impedance(ohm)

50

Connector

N(M)

Color

Black

Temp(deg)

-55~+125

Dimension(mm)

∅20-40(±5%)

Weight(g)

64

5W DC-6GHz N male RF temination5W DC-6GHz N male RF temination5W DC-6GHz N male RF temination
